AMSTECH AD6LS
ConditionNew
New

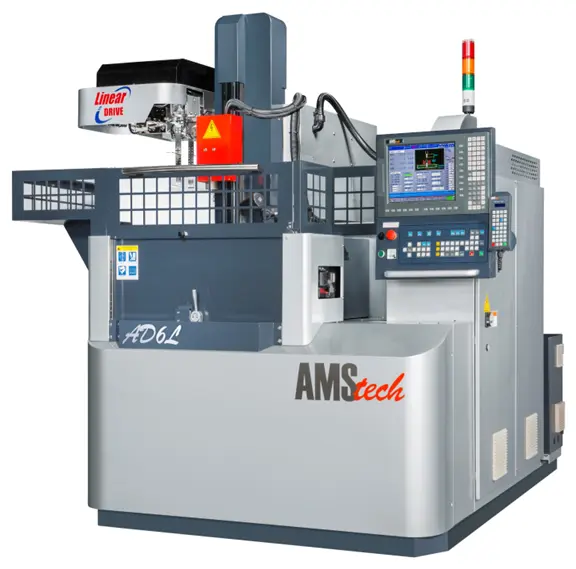

Explore the cutting-edge capabilities of the AMS/CHMER AD6LS, a high-speed CNC EDM Hole Driller renowned for its precision and versatility. This advanced model can be configured with four, five, or six axes and is often equipped with a 20-position automatic electrode and guide changer, enhancing its efficiency and adaptability for complex projects. It utilizes water as a dielectric medium and supports a wide range of electrode diameters from .008 to .124 inches, with options to expand up to .236 inches. The AD6LS features innovative "Soft Start" and "Breakthrough" burning technologies, allowing for the creation of non-circular holes—including conical shapes and expanding square or rectangular profiles.
Ideal for specialized applications such as cooling holes in jet engines and land-based gas turbines, this machine extends to full micro EDM machining with its 3D shape machining software. The integration of A and B rotary axes, controlled by a sophisticated 6-axis CNC system, simplifies programming and eliminates the need for auxiliary control units, ensuring seamless operation. The AMS/CHMER AD6LS sets a new standard in EDM machining, offering unparalleled precision and flexibility for manufacturers aiming to push the boundaries of technology and innovation in their field.
Travels X: 23.6” 600mm
Y: 15.7” 400mm
Electrode Travel W: 19.7” 500mm (opt. 600mm)
Guide Travel Z: 13.8” 350mm (opt. 600mm)
Work table size 28.3” x 19.7” 720mm x 500mm
Maximum work piece size 37.4” x 30.7” x 15” 950mm x 780mm x 380mm
Distance from table to guide 1.2” – 15” 30 – 380mm
Maximum electrode length 500mm 500mm
Maximum work piece weight 2,646 lbs. 1200 kg on table – weight on AB
subject to manufacturer’s specs.
Electrode diameter range .008 - .124" (Opt .240”) .2 – 3.0mm (opt. to 6.0mm)
Outside dimensions 86.6” x 100.8” x 90.6” 2200mm x 2560mm x 2300mm
Weight 7,055 lbs. 3200kg
Automatic electrode stabilizer Included
CNC Control W5F
- 32-bit Industrial PC-586, 32 mbyte DRAM, 1 Gig storage flash ram
- 15” color TFT flat panel display
- Input – MDI, RS232, LAN, USB port
- Conversational dialog programming
- Automatic edge finding, center finding, Z reference
- Sub programming
- Panasonic AC servo motors and drives, CHMER linear motor on X Axis, Y is optional
- 4-axis CNC control (5th and 6th axes optional)
- Blind hole, measuring, electrode dressing, Break Through technology (optional circular orbiting and
G-code shape machining).
Power Supply
Automatic dialog selection of cutting technology. The on-board technology is automatically selected and displayed. This technology is fully editable by operator.
• Extremely user friendly ● RS-232 port
• Conversational Programming ● USB port
• Auto cutting condition selection ● 15” color TFT
• Soft start and exit ● 3D shape machining (opt.)
• Industrial-grade PC with dual Intel Pentium processors ● Remote monitoring (opt.)
• LAN port ● Breakthrough Technology
• Blind hole, measuring technology.
