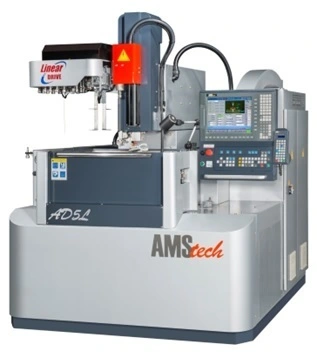

Experience the advanced capabilities of the AMS/CHMER AD5LS, a high-speed CNC EDM Hole Driller renowned for its versatility and precision. This machine is configurable with up to six axes and often features a 10 or 20-position automatic electrode changer with corresponding guide changers, enhancing its functionality for complex drilling tasks. Utilizing water as a dielectric medium, the AD5LS supports an electrode diameter range from .008 to .236 inches, enabling a wide variety of machining tasks, including the creation of non-circular holes such as conical and expanding square or rectangular shapes.
Designed to excel in challenging applications, the AD5LS incorporates innovative "Soft Start" and "Breakthrough" burning technologies, allowing for precise machining in the X and Y axes. Its 3D shape machining software, initially developed for creating cooling holes in jet engines and gas turbines, has been expanded to accommodate full micro EDM machining capabilities.
The machine's sophisticated 6-axis CNC control system manages the X, Y, Z, A, B, and W axes (with A and B being optional), streamlining the programming process. This setup eliminates the need for an auxiliary CNC control box, simplifying operations. The integration of rotary A and B axes, which rotate and tilt the workpiece respectively, provides exceptional flexibility and precision, making the AMS/CHMER AD5LS an ideal solution for industries requiring advanced machining technology that delivers both high performance and intricate detailing.
Travels X: 19.7” 500mm
Y: 11.8” 300mm
Electrode Travel W: 19.7” 500mm (opt. to 600mm)
Guide Travel Z: 11.8” 300mm (opt. to 600mm)
Work table size 28.3” x 16.9” 720mm x 430mm
Maximum work piece size 35” x 26.4” x 13” 890mm x 670mm x 330mm
Distance from table to guide 7.2” – 19.1” 185mm - 485mm
(This can be changed for AB clearance.)
Maximum electrode length 20” 500mm
Maximum work piece weight 2,200 lbs. 1000 kg on table. Weight on
AB subject to manufacturer’s
specifications.
Electrode diameter range .008 - .124" (opt. to .240”) .2 – 3.0 mm (Opt to 6mm)
Outside dimensions 80.5” x 87.8” x 90.6” 2045mm x 2230mm x 2300mm
Weight 6,600 lbs. 3000kg
Automatic electrode stabilizer Included
CNC Control W5F
- 32-bit Industrial PC-586, 32 mbyte DRAM, 1 Gig storage flash ram
- 15” color TFT flat panel display
- Input – MDI, RS232, LAN, USB port
- Conversational dialog programming
- Automatic edge finding, center finding, Z reference
- Sub programming
- Panasonic AC servo motors and drives, CHMER linear motor on X Axis, Y is optional
- 4-axis CNC control (5th and 6th axes optional)
- Blind hole, measuring, electrode dressing, Break Through technology (optional circular orbiting and
G-code shape machining).
Power Supply
Automatic dialog selection of cutting technology. The on-board technology is automatically selected and displayed. This technology is fully editable by operator.
Input power: 220/3/60hz, w/50 amps – 4kVA; w/75 amps – 5kVA
Power Supply/CNC control dimensions: Built-in
Power supply/CNC control weight: Built-in
• Extremely user friendly ● RS-232 port
• Conversational Programming ● USB port
• Auto cutting condition selection ● 15” color TFT
• Soft start and exit ● 3D shape machining (opt.)
• Industrial-grade PC with dual Intel Pentium processors ● Remote monitoring (opt.)
• LAN port ● Breakthrough Technology
• Blind hole, measuring technology.
