ConditionNew
New

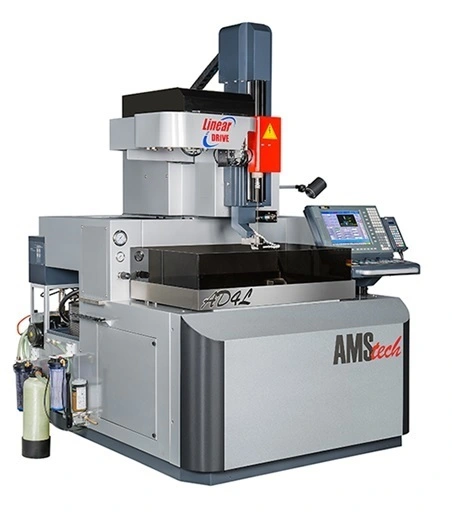

Discover the precision and versatility of the AMS AD4LS, a high-speed CNC EDM Hole Driller that sets the standard for modern machining. Designed to accommodate complex and detailed drilling tasks, the AD4LS can be configured with up to six axes and often comes with a 20-position automatic electrode changer, enhancing its capability for high-volume production.
This advanced driller uses water as a dielectric medium and supports a wide range of electrode diameters from .008 to .124 inches, with an option to extend up to .236 inches. It is equipped with cutting-edge "Soft Start" and "Breakthrough" burning technologies that enhance its performance, especially in the creation of non-circular holes like conical and expanding square or rectangular shapes.
The AD4LS shines in sectors requiring precise cooling holes, such as in jet engines and land-based gas turbines, thanks to its specialized 3D shape machining software. This software has been adapted to support full micro EDM machining, making the AMS AD4LS not just a tool but a comprehensive solution for intricate EDM tasks that demand precision and innovative technology. Ideal for industries looking to push the boundaries of EDM capabilities, the AMS AD4LS combines efficiency, precision, and flexibility to meet the most demanding machining challenges.
Travels X: 15.8” 400mm
Y: 11.8” 300mm
Electrode Travel W: 19.7” 500mm
Guide Travel Z: 11.8” 300mm
Work table size 21.6” x 16.9” 500 x 430mm
Maximum work piece size 31.5” x 21.6” x 19.1” 800 x 550mm x 485mm
Distance from table to guide 7.2” – 19.1” 185 – 485mm
Maximum electrode length 20” 500mm
Maximum work piece weight 1,980 lbs. 900 kg on table, weight
on AB subject to mfg. spec.
Electrode diameter range .008" - .124" (opt. to .236”) .2 – 3.0mm (opt. to 6.0mm)
Outside dimensions 69” x 72” x 82.7” 1750 x 1830 x 2100mm
Weight 5,071lbs. 2300kg
Automatic electrode stabilizer Included
• Extremely user friendly ● RS-232 port
• Conversational Programming ● USB port
• Auto cutting condition selection ● 15” color TFT
• Soft start and exit ● 3D shape machining (opt.)
• Industrial-grade PC with dual Intel Pentium processors ● Remote monitoring (opt.)
• LAN port ● Breakthrough Technology
• Blind hole, measuring technology.
