New - Build-To-Order EDMMAX SD530 | EDM Hole Drilling Machines
Have one to sell?
ConditionNew
New

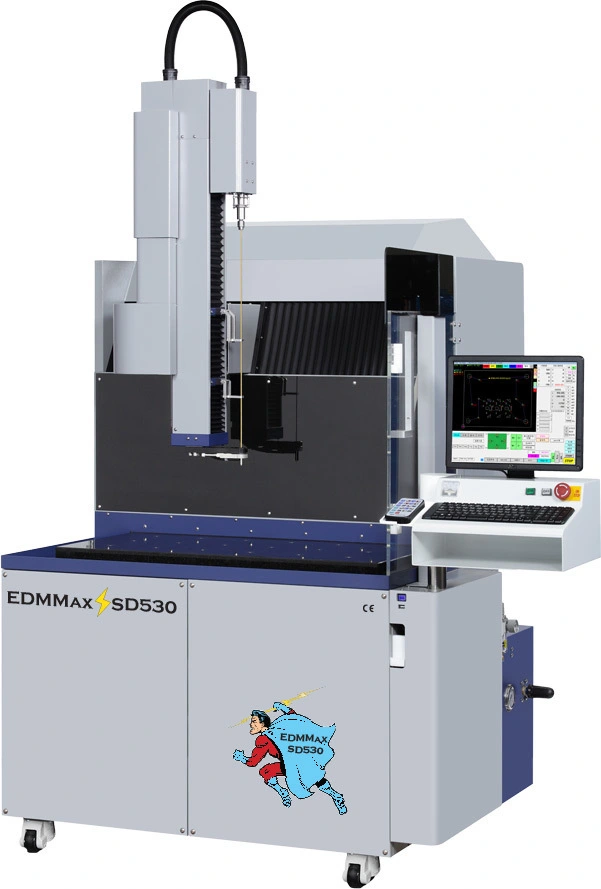

Explore the capabilities of the SD-530-CNC, equipped with a wide granite table that provides ample workspace for operators. Despite its compact size, this machine offers substantial travel dimensions of 550 x 300 x 360 mm, while the table itself measures 940 x 450 mm, enhancing ease of use and accessibility for larger projects.
The SD-530-CNC stands out for its versatility in drilling sizes. It easily handles holes up to 3.0 mm with standard specifications, making it an ideal choice for precision drilling. For those looking to tackle larger diameters, the machine can accommodate drilling up to 6.0 mm by utilizing optional features such as a Power Booster and a Big Size Guide Plate. This flexibility makes the SD-530-CNC a valuable tool in any setting requiring precise, larger-scale drilling without compromising on space or capability.
Tables (X x Y) 21.6" x 11.8"
W - Electrode Travel 23.6"
Z - Guide Travel 14.2"
Maximum Work Piece Size 22" x 11.8"
Maximum Distance Table to Guide 3.6" - 17.8"
Work Piece Weight 660 lbs.
Electrode Diameter .012"-.124"
Maximum Electrode Length 28"
Machine Weight 2200 lbs.
Machine Dimensions 71" x 59" x 86.6"
Power Supply 60A
Automatic Electrode Charger (AEC) 11 opt.
Automatic Guide Changer (AGC) 4 opt.
Work Tank Size 34 gal.
Power Input 220/3/60 6kVA
