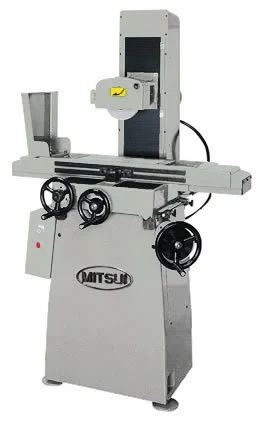

Experience unmatched stability and precision with the Mitsui 200MH Surface Grinder, crafted from robust meehanite castings reinforced with internal ribs. This grinder is engineered for maximum stability and high-precision performance, featuring a three-point leveling system with jack bolts and plates for optimal balance during operations. The design of the Mitsui 200MH simplifies the replacement of key components, significantly cutting down maintenance time and operational costs.
The Mitsui 200MH is renowned for its unparalleled precision, thanks to its removable cartridge spindle known for its exceptional quality and accuracy. The carriage/saddle glides smoothly on dual 45-degree "Vees," while the table operates on linear ball bearings, enhancing the machine’s repeatability and reliability in precision grinding tasks.
Durability is a hallmark of the Mitsui 200MH, which incorporates D-2 hardened and ground steel ways on the table, carriage/saddle, and vertical column movements, ensuring consistent performance even under rigorous use. The spindle’s lubrication is permanently sealed to protect against contaminants, and an automatic lubricating system meticulously maintains all vital components, minimizing wear and maintenance demands. This surface grinder is an ideal solution for industries requiring precise and reliable machining, ensuring efficient operations with reduced downtime.
Specifications
Chuck Capacity 6” x 13-1/2”
Table Movement 8” x 15”
Table to Spindle Center Height 13-1/2”
Variable Speed Control for Spindle Motor
0 - 4,000 RPM
Fine Feed Dials for Vertical and Cross Feed
Mechanical vertical (0.00001”) & Cross Feed (0.00005”) allows for ULTRA precision grinding
Vertical Feed (Up & Down) Construction
The linear motion guide provides precision and high rigidity for accurate grinding
Direct Drive Spindle
1-1/3 hp 2P, 220 Volt (Enclosed, Ball Bearing, Dynamically Balanced Spindle Motor). Heavy duty removable cartridge spindle with two sets of double row angular contact, grease packed super precision bearings.
Grinding Wheel
8” x 3/4” x 1-1/4” capacity
Table (Left & Right) Construction
D-2 hardened steel ways with linear ball bearings mounted on the hand scraped ways of the saddle and table. These ways are mounted with screws and easily replaceable.
Cross Feed (In & Out) Construction
Saddle moves on two automatically lubricated hand scraped 45 degree angle Vee Ways
