INGERSOLL Eagle V9C 5-Axis Vertical Machining Center
Have one to sell?
ConditionNew
New

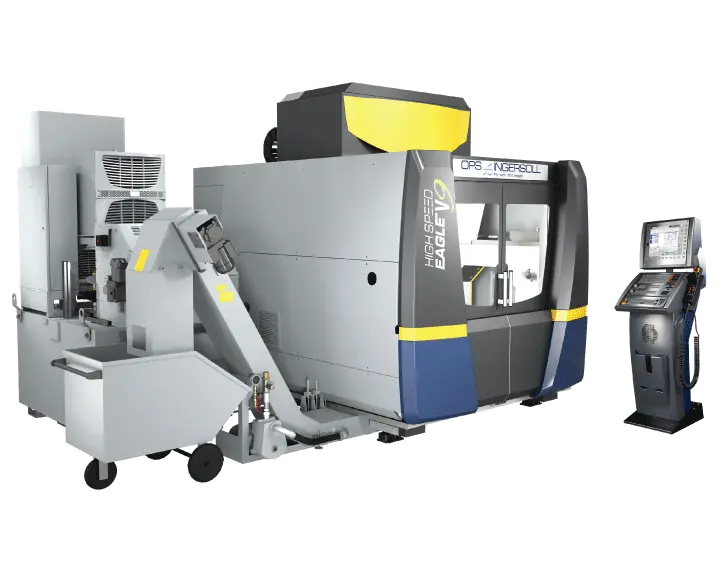

Discover the INGERSOLL Eagle V9C, a precision-engineered 5-axis vertical machining center designed for optimal performance. With expansive travels of 31.5" x 23.6" x 19.7", a powerful 40 hp motor, and a high-speed capability of 24,000 RPM, this machine is equipped to handle complex and detailed machining tasks with precision. The Eagle V9C features an HSK-A63 spindle, a 48-position automatic tool changer for efficient operation, and is controlled by the advanced Heidenhain TNC-640 system, ensuring superior accuracy and ease of use. Built on a robust polymer concrete bed, the Eagle V9C offers stability and vibration damping, enhancing the quality of machining. Perfect for industries requiring high precision and flexibility, the Eagle V9C sets new standards in machining capabilities.
X x Y x Z-Axis Travel inch 31.5 x 23.6 x 19.7
Table
Max. Workpiece Height inch 21.6
Max. load capacity lb. 4400
T-slots (No. x W x D) mm 4 x 18 H12
Spindle Nose to Faceplate inch 6.8 ~ 26.6
Spindle
Spindle speed rpm 24,000 (STD)
Automatic tool changer
Tool number Total 48 (STD) / 47 Actual
Probe Uses (1) Pocket
Tool-to-Tool Change Time sec 10
Max. Tool Diameter Inch/mm 1.97” (50mm) (STD)
Max. tool length inch 10.2
Max. tool weight lb. 4.4
ATC type 8-Flange Pulsing ATC
Tool shank HSK-A63 (STD)
Motor
Spindle motor (cont. /30min.) HP 26.8 / 40.2
X/Y/Z servo motor HP (2x) 3.6/(2x) 3.6/(1X) 3.6
Rapid speed
X/Y/Z rapid speed in/min 1,181
Cutting federate (max) in/min 1,181
Controller
Heidenhain TNC-640
Miscellaneous
*3-Axis Static Laser Measured Positioning Accuracy X,Y,Z inch .000197” Full Travel
*3-Axis Static Laser Measured Repeatability X,Y,Z inch .000118” Full Travel
Heidenhain Glass Scale Resolution Inch / (MM) 0.0000003937 (.00001 mm)
Machine weight lb. 25,353
Power requirement V / KVA 400 / 40
Compressed Air Requirement Cu.ft./min. 31.8
P3 Version Coolant System Volume 185 Gallons 580 PSI Thru Tool & Flood
Air source psi 130
Machine Foot Print W, D, H inch 85.7 x 120.6 x 112.2
• Travels: X, Y, Z: 31.5” x 23.62” x 19.69”
• Rapid Traverse: - 1,181 in/min (X, Y, Z)
• Max Acceleration: 49ft/s² (1.5 G)
• HF Spindle 40.2 hp, 24,000 RPM, HSK-A63, 48 pos. ATC
• Renishaw Infrared Measuring Probe
• Blum Laser System for tool breakage detection and tool length/diameter compensation.
Absolute accuracy: .000039” (0.001 mm)
Repeatability .000005” (0.0003mm)
Automatic Tool Cleaning-OPTIONAL
• Double Gantry Drive both X and Y-axis
• Vibration Dampening Polymer Concrete Machine Bed
• 3-Point Foundation Setup/Leveling
• Ball Screws with Direct Drive AC Motors
• Absolute Measuring with Dual Glass Scales on the X & Y-axis
Air Purged
• P3 Coolant System
o 185 Gal (700 L) Coolant System
o 580 PSI Thru Tool Coolant
o External Coolant
o Police Filter
o Belt Filter
o Chip Conveyor (Chip Bucket Optional)
• Air Blow System spindle external
145psi (10bar)
• Auto Lube System both drives and ways
• Full lining with dust and liquid protection
• LED Machine Lamp in work area
• Faceplate Prep for Workpiece Pallet System
• Machine Shoes (leveling pads)
• Precision Package 2 Temperature-distribution compensation, incl.
