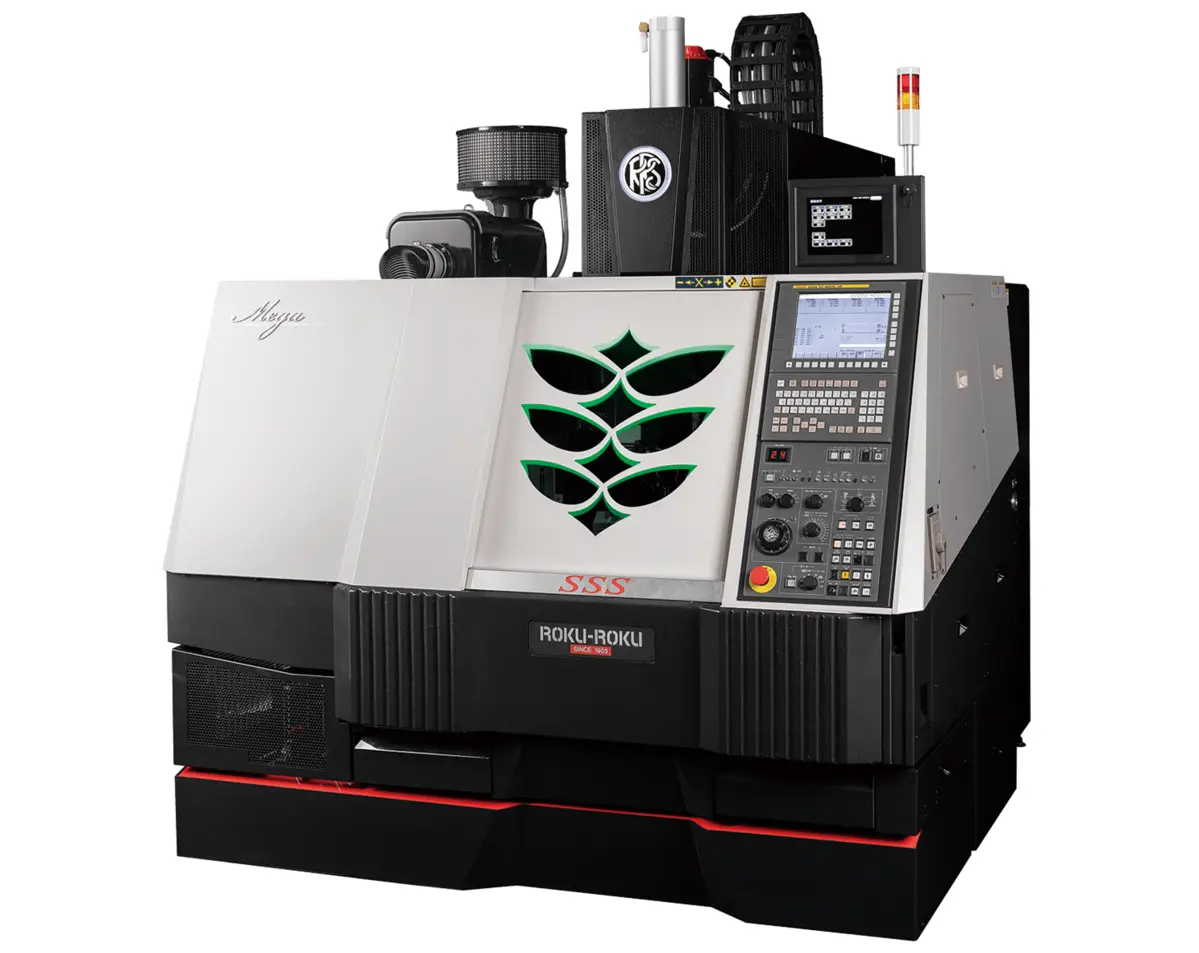

Elevate your machining capabilities with the MEGA SSS family of 5-axis machining centers, engineered for unmatched precision and speed. These centers are specifically designed to meet the demands of jobs requiring ultra-fine detailing and micro-accuracy, down to the thousandth of a millimeter. Whether you're dealing with micro-fine milling or small-hole drilling, the MEGA SSS machines, available in 40,000 and 60,000 RPM versions, ensure high-speed, precise machining outcomes. The series stands out by offering rapid machining capabilities that reduce cycle times and boost productivity, advanced precision for extraordinary detail on every project, and versatile machining from small-hole drilling to complex milling for consistent, reliable results. Equipped with a flexible and user-friendly CNC controller, these machining centers allow operators to maintain high levels of precision and quality effortlessly. Discover how the MEGA SSS 5-axis machining centers can transform your manufacturing process, delivering the precision your customers expect and the efficiency your shop needs.
Machine Travels: X x Y x Z in (mm) 16.0 x 13.0 x 7.9 (400 x 330 x 200)
Spindle Speed (600) 3,000 ~ 40,000 RPM (60,000 RPM)
Spindle HP 4.7
Spindle Lubrication Oil Mist
Tool Changer Size 20 Position Standard (40 or 60 optional)
Positioning Accuracy/Repeatability: in (μm) ±0.000040/±0.000012 (±1.0/±0.3)
Rotary Table Faceplate: in (mm) Ø 3.94 (Ø100)
Max. Tilting A-Axis Angle: deg. -120 ~ +10
Rotary C-Axis Index Accuracy ±1.5 arc sec.
Tilting A-Axis Index Accuracy ± 3.5 arc sec.
Faceplate to Spindle Nose Distance: in (mm) 1.07 ~ 8.94 (27 ~ 227)
Max. Workpiece Weight: lb (kg) 20 (44)
Coolant Tank Capacity: gal (L) 37 (140)
Faceplate Height from Floor: in (mm) 38.3 (973)
Actual Measured Circularity (2.0″ dia. @8 IPM): in (μm) 0.000039 (1.0)
Spindle Taper HSK-E25
Spindle Air Purge Standard
Air Blast through Spindle NA
Oil Mist with Collector Optional
Linear Scales X, Y, Z – axes Heidenhain 0.000002mm Standard
Rapid Traverse Speed: in/min. (m/min.) 590 (15.0)
Cutting Speed (Normal Mode): in/min. (mm/min.) 0.04 – 394 (1 ~ 10,000)
Cutting Speed (GR Super PC Mode): in/min. (m/min.) 590 (1.5)
Dust Collection System NA
Machine Weight: lb (kg) 6173 (2800)
Machine Height: in (mm) 90.1 (2290)
Required Floor Space: in (mm) 79.1 x 106.0 (2010 x 2690) w coolant chiller option
Control Unit Fanuc 31i-B5 Super High-Speed Processor, Al Contour Control II and 5-Axis machining package
Power Requirements KVA 200 ~ 220VAC: 14.0KVA (16.5kVA w options)
Air Supply 9 cu.ft./min @ 72 psi
COMPONENTS:
High-rigidity Meehanite structure
High-rigidity HSK-E40 tool holders, allowing 6x higher clamping force than a regular BT shank for highly reliable work
Roller pack-type linear motion ways
Z axis thermal growth compensation
Non-contact tool measurement (Blum Laser) with air-blow cleaning
Dual Z axis balance cylinders
X, Y, Z axis linear scales
Spindle chiller with 7-gallon oil tank
80-gallon coolant tank standard
USER INTERFACE:
Fanuc 31i-B5 super high-speed processing, NANO smoothing, AI Contour Control II, and NANO interpolation
1000-block look-ahead block expansion
Super PC III function with 3-mode operation to balance speed and accuracy
