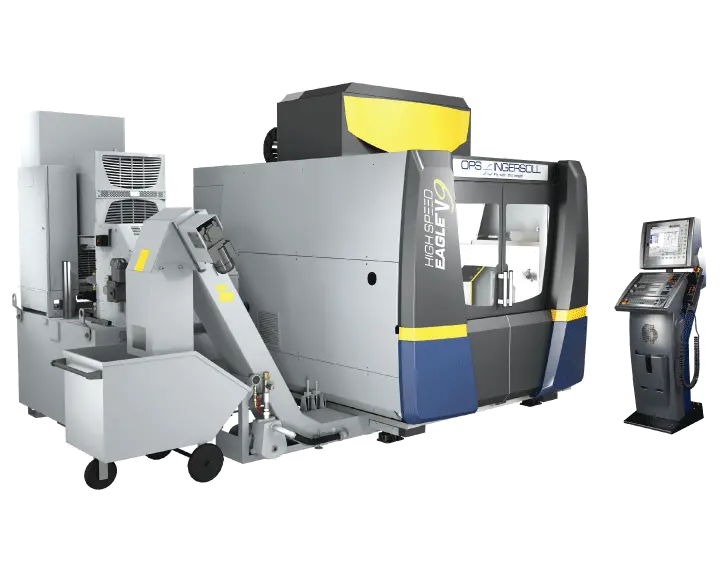

Enhance your production line with the Eagle V9C, a state-of-the-art 5-axis vertical machining center, designed for ultra-precision and efficiency. This machine features an advanced coolant system and boasts the capacity to manage a 550-lb. workpiece on its 23.6-inch diameter table. The Heidenhain TNC-640 control unit, mounted on a movable pedestal, ensures optimal user convenience and precise control, making complex tasks manageable.
The Eagle V9C's design includes a strategic side opening in the casting, making it ready for automation and facilitating easy robot loading from the right side with pallets up to 19.7 inches square. Ideal for businesses looking to streamline operations and enhance productivity, the Eagle V9C combines flexibility, power, and precision, enabling you to deliver superior products quickly and cost-effectively. Perfect for manufacturers seeking a reliable and versatile 5-axis milling solution, the Eagle V9C is engineered to meet the demands of modern machining environments.
Machine Travels: X x Y x Z in (mm) 31.5 x 23.6 x 19.7 (800 x 600 x 500)
A-Axis Tilt Range degree (RPM) -60 ~ 140° (25)
C-Axis Rotation Range (RPM) 360° (100)
Rotary Table Faceplate: dia. (mm) 23.6 (600)
Max Workpiece Height: Faceplate/Pallet (mm) 21.6/19.7 (550/500)
Max Rotary Table Cap: lb (kg) 1,100 (500)
Spindle Speed 26,000 RPM
Spindle HP cont./30 min (kw) 26.8/40.2 HP (20.0/30.0 kw)
Spindle Nose to Table: in (mm) 2.75 ~22.4 (70 ~600)
Tool Changer Selection HSK-A63 (48 pos std)
X, Y, Z Rapid Speed: in/min (m/min) 1,181 (30)
Max Workpiece 3-Axis in/lb (mm/kg) 31.5 x 23.6 x 19.7 /4,400 (800 x 600 x 500 /2,000)
Machine Weight: lb. (kg) 25,353 (11,500)
Mach Dimensions W-D-H: in (mm) 85.7 x 120.6 x 112.2 (2,180 x 3,060 x 2,850)
Precision package 3 for 5-axis machines – Temperature-distribution compensation, including:
ATDC (Automatic Temperature Drift Control)
5-axis compensation
Heidenhain option (kinematics optional)
Ceramic ball for kinematics accord
P3 185-gallon coolant system including machine preparation for water
Police Filter
Belt Paper Filtration
Scraper Chain Conveyour
Work Area Flushing
580 PSI Thru Tool Coolant
Air Blow System spindle external (145 psi)
Integrated 4/5-axis system (without T-slot table)
HF spindle 40.2 HP, 26,000 RPM, HSK-A63, 48-pos ATC
Renishaw infrared measuring probe
Blum laser system for tool breakage detection and tool length/diameter compensation
Double gantry drive, both X and Y axis
Vibration-dampening polymer concrete machine bed
3-point foundation setup/leveling
Ball screws with direct drive AC motors
Absolute measuring with glass scales (Air Purged)
Auto Lube System both drives and ways
Full lining with dust and liquid protection
Faceplate Prep for Workpiece Pallet System
