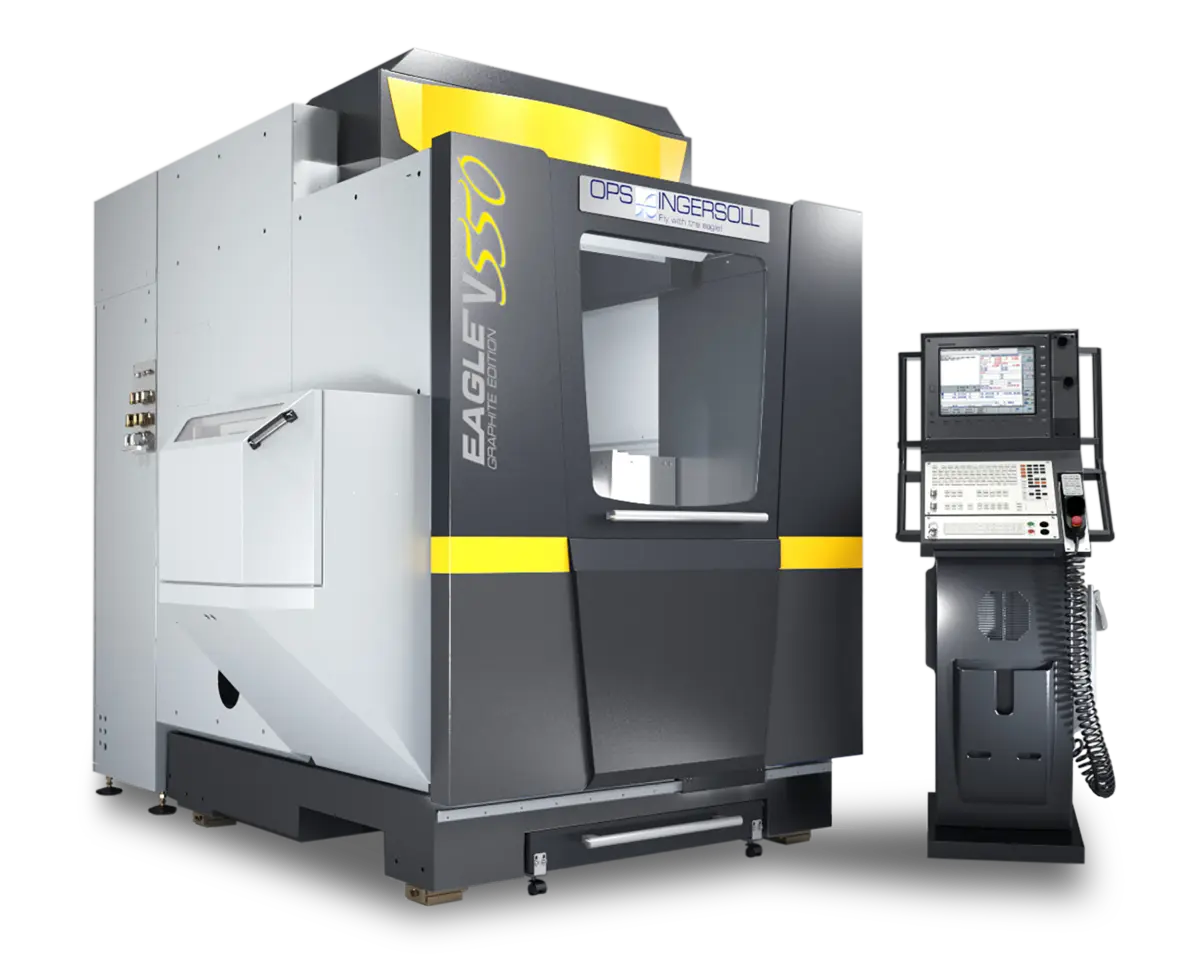

Maximize your machining efficiency with the Eagle V550, a compact yet powerful 5-axis vertical machining center tailored for high-speed, high-precision machining of small graphite electrodes and mold/die components. This VMC overcomes the common challenges faced by modern machine shops, including limited skilled labor and the push towards automation, offering a solution that enhances productivity without expanding your machine fleet's footprint.
The Eagle V550 is engineered to tackle demanding tasks with ease, featuring advanced design elements that ensure ultra-rigid and precise operations, crucial for industries requiring detailed and delicate machining. With its capacity to enhance speed and efficiency while maintaining top quality, the Eagle V550 is the ideal tool for shops looking to improve outputs and tackle complex jobs with confidence. It represents a strategic response to the need for faster, more precise machining capabilities in a competitive market.
Machine Travels: X x Y x Z in (mm) 21.6 x 15.7 x 15.7 (550 x 400 x 400)
B-Axis Tilt Range Degree (RPM) -120° ~ 60° (25)
C-Axis Rotation Range Degree (RPM) 360° (60)
Rotary Table Faceplate: dia. (mm) 15.75 (400)
Max Workpiece Height: Faceplate/Pallet (mm) 15.7/12.7 (400/325)
Max Rotary Table Cap: lb. (kg) 550 (250)
Spindle Speed 42,000 RPM
Spindle HP (S1 100%) 20 HP (15 kw)
Spindle Nose to Table: in (mm) 2.0 ~ 17.7 (50 ~ 450)
Tool Changer Selection HSK-E40 (32 pos std) / (100 pos optional)
X, Y, Z Rapid Speed: in/min. (M/min.) 1181 (30)
Max Workpiece 3-Axis / in/lb. (mm/kg) X 21.6 x Y 15.7 x Z 15.7 / 1102 ( 550 x 400 x 400 / 500)
Machine Weight: lb. (kg) 15,873 (7,200)
Mach Dimensions W-D-H: in (mm) 79.5 x 110.2 x 96.5 (2,020 x 2,800 x 2,450)
Integrated 4/5-axis system (without T-slot table)
Maximum acceleration: 49 ft/s²
HF spindle 20 HP, 42,000 RPM, HSK-E40, and 32-position ATC (100-position ATC optional)
Renishaw infrared measuring probe
Blum laser system for tool breakage detection and tool length/diameter compensation
Vibration-dampening cast iron bed with sand-filled BIOCAST® design
3-point foundation setup/leveling
Ball screws with direct drive AC motors
Absolute measuring with glass scales
Oil-mist lubricant system, spindle external
2-color status light
Auto lube system, both drives and ways
Full lining with dust and liquid protection
LED machine lamp in work area
Chip tray
Precision package 3 for 5-axis machines – Temperature-distribution compensation, including:
ATDC (Automatic Temperature Drift Control)
5-axis compensation
Heidenhain option (kinematics optional)
Ceramic ball for kinematics accord
