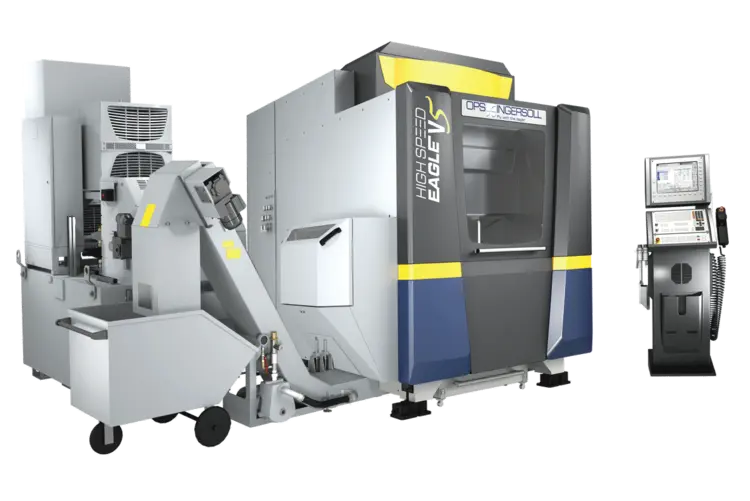

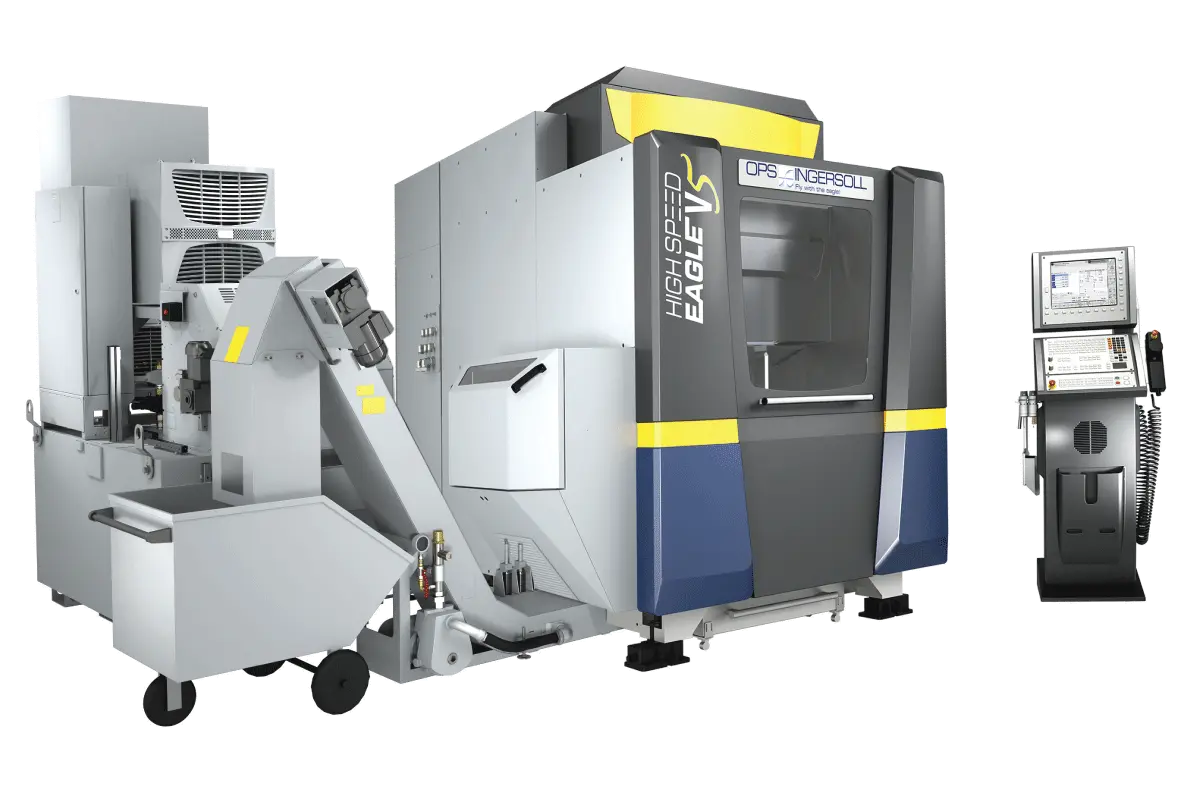

Elevate your machining precision and efficiency with the Eagle V5C, a high-speed, ultra-rigid 5-axis vertical machining center (VMC) designed to overcome the challenges of modern machine shops. This advanced machine solution offers enhanced cooling controls and a robust design, making it perfect for today's complex and precise workpieces. Tackling the pressing issues like the shortage of skilled labor and the demand for faster production through automation, the Eagle V5C ensures your investments in machining technology pay off. Its capability to deliver unmatched precision and speed makes it an ideal choice for industries looking to enhance productivity and overcome operational challenges with state-of-the-art equipment. Embrace the future of machining with the Eagle V5C and turn your shop's challenges into opportunities for growth and efficiency.
Machine Travels: X x Y x Z in (mm) 21.6 x 15.7 x 15.7 (550 x 400 x 400)
B-Axis Tilt Range Degree (RPM) -140° ~ 60° (25)
C-Axis Rotation Range Degree (RPM) 360° (100)
Rotary Table Faceplate: dia. (mm) 15.75 (400)
Max Workpiece Height: Faceplate/Pallet (mm) 15.7/12.7 (400/325)
Max Rotary Table Cap: lb. (kg) 440 (200)
Spindle Speed 36,000 RPM
Spindle HP (S1 100%) 33 HP (24.8 kw)
Spindle Nose to Table: in (mm) 2.0 ~ 17.7 (50 ~ 450)
Tool Changer Selection HSK-E50 (32 pos std) / (80 pos optional)
X, Y, Z Rapid Speed: in/min. (M/min.) 1181 (30)
Max Workpiece 3-Axis / in/lb. (mm/kg) X 21.6 x Y 15.7 x Z 15.7 / 1102 ( 550 x 400 x 400 / 500)
Machine Weight: lb. (kg) 15,873 (7,200)
Mach Dimensions W-D-H: in (mm) 79.5 x 110.2 x 96.5 (2,020 x 2,800 x 2,450)
Integrated direct drive 4/5-axis system (without T-slot table)
Maximum acceleration: 49 ft/s²
HF spindle 33 HP, 36,000 RPM, HSK-E50, and 32-pos ATC (80 optional)
Renishaw infrared measuring probe
Blum laser system for tool breakage detection and tool length/diameter compensation
Vibration-dampening polymer concrete machine bed
3-point foundation setup/leveling
Ball screws with direct drive AC motors
Absolute measuring with glass scales
Oil-mist lubricant system, spindle external
2-color status light
Auto lube system, both drives and ways
Full lining with dust and liquid protection
LED machine lamp in work area
P3 coolant system
185-gallon tank capacity
580 PSI through tool coolant
External coolant
Police filter
Belt filter
Chip conveyor (chip bucket optional)
Precision package 3 for 5-axis machines – Temperature-distribution compensation, including:
ATDC (Automatic Temperature Drift Control)
5-Axis compensation
Heidenhain option (kinematics optional)
Ceramic ball for kinematics accord
Precision package 5 for 5-axis machines: Includes active temperature control
Active cooling lines run through the machine to remove heat from the machine base, spindle mounts, floating bearings, fixed bearings, guideways, etc.
Heidenhain CTC (Cross-Talk Compensation) which corrects for dynamic position errors caused by axis acceleration and braking
