MITSUBISHI EDM SG12ST - Sinker EDM
Have one to sell?
ConditionNew
New

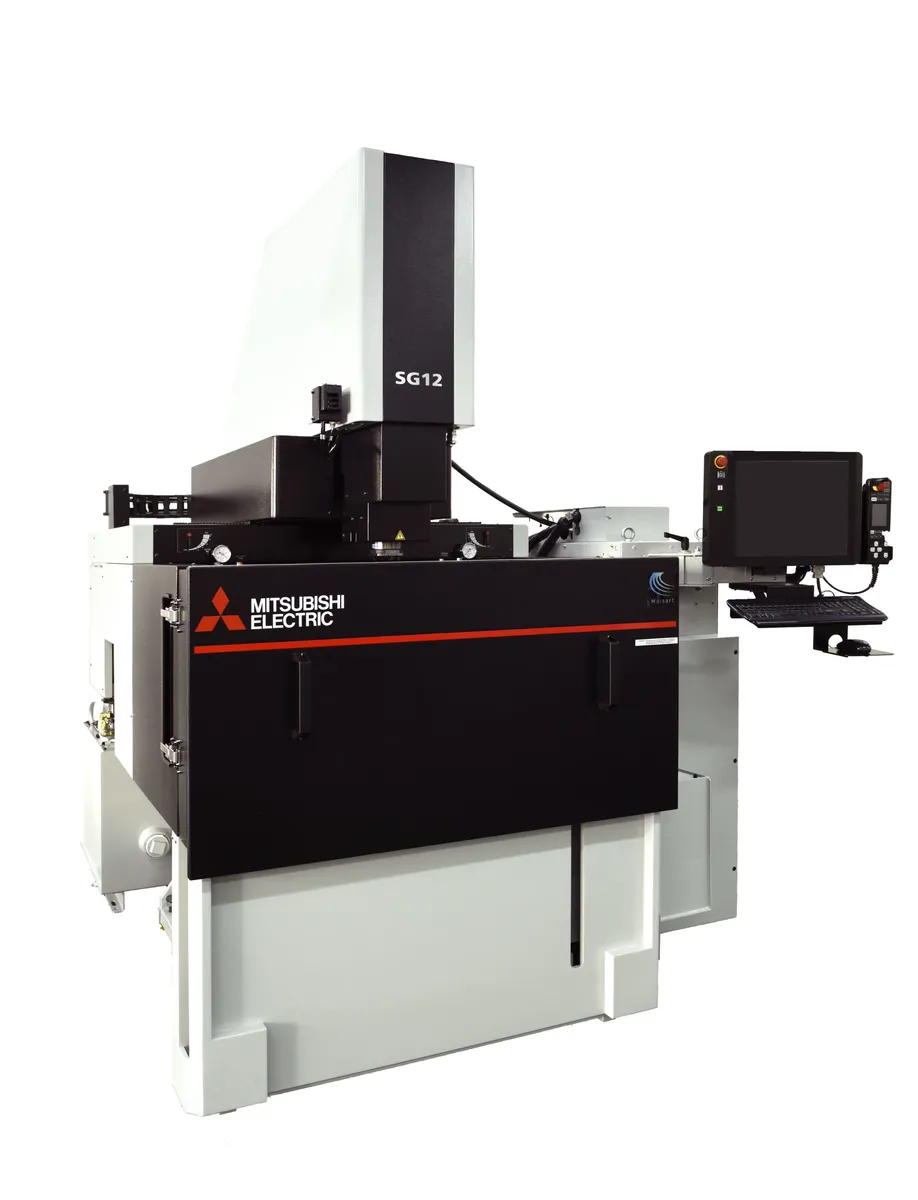

Discover the Mitsubishi EDM SG12ST Sinker, the pinnacle of precision engineering for intricate machining requirements. This state-of-the-art sinker EDM is specifically designed for complex cuts where exact precision is paramount. Featuring a robust C-Axis functionality, it allows for flexible and detailed geometrical machining, making it ideal for high-stakes industries such as aerospace, medical, and die-mold manufacturing.
The machine is equipped with a large 19-inch LCD screen that enhances the user interface, providing clear and direct machine control for improved operational workflow. Embedded with MaiSmart AI technology, the SG12ST optimizes machining operations with advanced algorithms that boost precision and efficiency. Additionally, the innovative IDPM3 technology minimizes graphite wear, ensuring longer tool life and consistent, high-quality performance.
Perfect for demanding sectors that require the highest levels of accuracy, the Mitsubishi EDM SG12ST Sinker introduces a new standard of precision in the industry. Start your journey toward advanced machining to experience cost reductions and improved outcomes, ensuring your production is not only efficient but also economically advantageous.
Machine
Unit Machine Type SG12ST
X-axis stroke (inch) 15.7
Y-axis stroke (inch) 11.8
Z-axis stroke (inch) 11.8
Work Tank internal dimensions (W x D x H) (inch) 41.3 x 27.5 x 17.7
Dielectric fluid level (Min~Max) (inch) 8.26 ~15.7
Work tank access Up/down style manual front door
Rapid fill / drain Auto (std)
Table dimensions (W x D) (inch) 27.5 x 19.7
Max. workpiece weight ( lb.) 2200
Max. workpiece dimensions (W x D x H) (inch) 35.4 x 25.6 x 13.8
Max. electrode weight (on platen) ( lb.) 110 lbs.
Distance table to platen (Min~Max) (inch) 11.7 ~ 23.5
Distance table to EROWA ITS C-Axis chuck (Min~Max) (inch) 10.4 ~ 22.2
Distance table to 3R MACRO C-Axis chuck (Min~Max.) (inch) 9.8 ~ 21.5
Floor to table level distance (inch) 35.4
Machine structure Fixed table / traveling column
Rapid travel speed (inch / min.) 275.5
Min. command input .0001mm / .00001”
Min. drive resolution .00005mm / .000002”
Drive motor type Intelligent AC servo
Motor coupling type Direct drive
Positioning detector (XY) Rotary Encoders
Positioning detector Z-Axis Linear Scale
Machine system dimensions (W x D x H) (inch) 75.6 x 82.6 x 95.2
Machine weight, including power supply (lb.) 7,480
Power
Supply Type (Optional) GV80P (GV120P)
Machining current: Peak (Optional) 80 (120)
Control Unit Program support function E.S.P.E.R. II
Machining function IDPM 3/Orbit Pro
Graphic display 19” TFT color LCD
CPU / type M800 Series / Industrial PC
Dielectric Fluid System Reservoir capacity (gal) 145.3
Filtering method Paper cartridge (2pc)
Temperature control type Chiller FTS (Standard)
Machine Layout Installation dimensions (W x D) with access clearance (inch) 105.1 x 120.0
Automatic Tool Changer
(ATC) Shuttle Type (MACRO/Combi) 4/7
MVH Type 20
3R Compact Combi (MVH Style Mandatory) MACRO (11 lb.) Jr. (5.5 lb.)
EROWA-ITS/3R MACRO 22 lb.
C-axis Max. Electrode weight (Manual / Auto Change) (lb.) 110 / 22
Speed RPM 1 to 30
Min. indexing angle .001
Min. drive unit .001
C-Axis w Automatic Chuck (Select one: 3R Combi, 3R Macro, Erowa ITS)
Linear Glass Scale (Z-axis)
Steel Table w 3 T-Slots
Auto Lubrication Device (Auto-oils ways and ball screws)…..…
M800 Series Mitsubishi Control (19” touch screen)
ESPER ADVANCE PRO Lite (offline programming package)
MaiSmart (artificial intelligence)
SS Jump 5 (High-Speed Jump Stabilization System)
IDPM3 (Power Master Adaptive Control) Graphite electrode wear reduced by 40%
Built-in Scheduler
USB Flash Memory Ports (2)
DNC Hardware (Ethernet FTP)
Remote Pendant Box
Tungsten Carbide Machining Circuit (Carbide Machining with Generator)
SC Circuit (Super-low Metallic Electrode Wear)
PS Circuit (Fine Matte Finishing Circuit)
HGM2 Circuit (Glossy Mirror Finishing Circuit)
Narrow Gap Circuit
Dielectric Fluid Emission
Dielectric Fluid Suction
Chiller FTS
Remote 360 (Included throughout the warranty period)
Preventative Maintenance (PM) Visit (to be used within 1st year – travel not included)
Two (2) Year Warranty (Covers all parts & labor, travel/shipping costs)
FREE "Platinum" level membership (during your warranty period)
