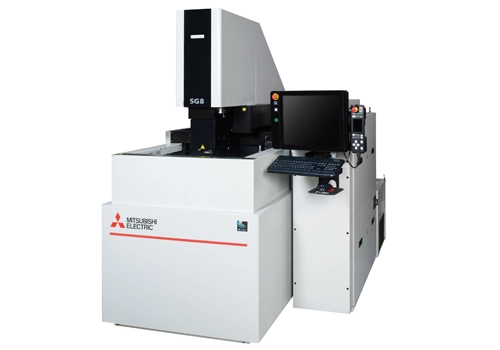

Explore the frontier of sinker EDM technology with the Mitsubishi SG8, a next-generation machine designed to enhance both performance and productivity. At the heart of the SG8 is the integration of Maisart—Mitsubishi Electric’s cutting-edge AI that redefines the state of the art in technology—and the high-performance M800 controller unit (D-CUBES).
The SG8 features automatic depth recognition powered by Maisart, ensuring a uniform surface finish through stable servo control. The innovative M800 D-CUBES controller boasts a 19-inch touchscreen interface, offering smartphone-like usability and simplifying the operation and programming processes. This system is complemented by a sleek, new thin operation box as standard equipment, enhancing user interaction and ease of use.
Central to the SG series' capabilities is the GV80 generator, which delivers maximum performance with minimal wear, especially crucial in mold making with graphite electrodes. Whether machining carbide economically, handling unusual tasks like titanium or PCD machining, the GV generator is exceptionally equipped for diverse challenges.
Enhanced structural rigidity and improvements in middle to large area machining performance are achieved through strategic changes in casting, optimizing machining time and reducing electrode wear. Experience unparalleled advancements with the SG8's new functions that innovate machining performance for the most demanding applications.
Machine travel [ X x Y x Z ] (mm) - 300 x 250 x 250
Max. work-piece dimensions [ W x D x H ] (mm) - 770 x 490 x 200
Max. work-piece weight (Kg) - 550
Axis movement (-) - Fixed table, Column Movement
Dist. b/w table & electrode mount face (mm) - 150 to 400
Max. electrode weight (Kg) - 25
Unit weight (Kg) - 2000
Initial Dielectric fluid amount (Ltr) - 270
Dielectric fluid chiller unit - In-build unit cooler
Method of Working tank door - Automatic elevation tank
Max. machining peak current (A) - 80
Power requirement (kVA) - 6.5
User memory capacity (GB) - 1
Min. drive unit (µm) - 0.1
C - Axis and Automatic tool changer - Available as option
Features related to Industry 4.0 - Remote 360
