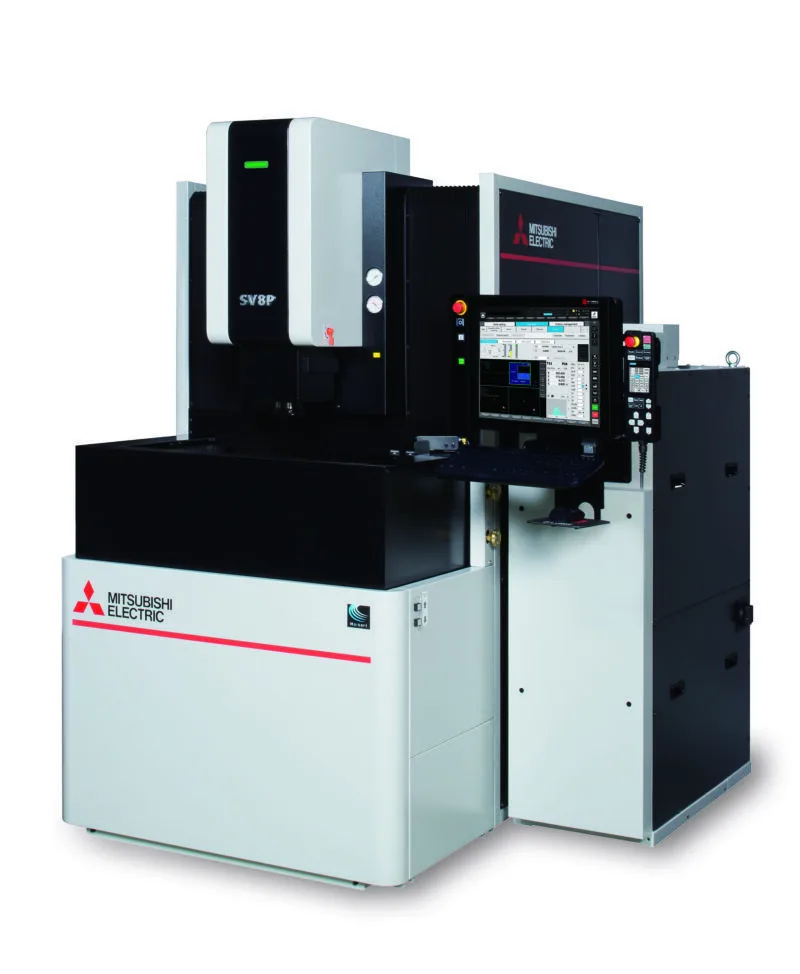

Mitsubishi EDM SV8P SINKER EDM
Have one to sell?
ConditionNew
New
Discover the SV8P, an artificial intelligence-infused powerhouse tailored for precision mold- and die-making applications demanding tight tolerances. This machine combines accuracy, temperature management, and productivity without compromise, setting a new standard in precision machining.
The SV8P excels not only in ultra-fine, high-quality sinker EDM tasks but also handles exotic materials with ease, making it a versatile choice for various industrial applications. Its ergonomic design and onboard AI with cloud-based monitoring systems simplify operation, making it accessible to operators of any skill level.
With the SV8P, businesses can leverage serious benefits: enhanced productivity with reduced resource usage, lower operational costs, and consistent production of high-quality work with minimal maintenance downtime. By equipping your facility with the SV8P, you streamline operations, reduce costs, and achieve exceptional results across your machining projects, enhancing your competitive edge in the industry.
Machine Travels X x Y x Z: in (mm) 11.8 x 9.8 x 9.8 (300 x 250 x 250)
Maximum Workpiece Size W x D x H: in (mm) 30.3 x 19.3 x 7.9 (770 x 500 x 200)
Max Dielectric Fluid Level: in (mm) 2.6 ~ 15.7 (65 ~ 400)
Power Supply (Option) / Peak Current GV80P / 80 AMPs (GV120P / 120 AMPs)
Internal Worktank Dimensions W x D x H: in (mm) 31.5 x 20.5 x 11.8 (800 x 520 x 300)
Worktank / Door Type 3-Sided Drop Tank
Max. Workpiece Weight: lb. (kg) 1,210 (550)
Table Dimensions W x D: in (mm) 19.7 x 13.8 (500 x 350)
Max. Electrode Weight on Platen: lb. (kg) 55 (25)
Table to Platen Distance Min ~ Max: in (mm) 5.9 ~ 15.7 (150 ~ 400)
Table to C-Axis Chuck Distance Min ~ Max: in (mm) 5.9 ~ 15.7 (150 ~ 400) EROWA ITS Chuck
Table to C-Axis Chuck Distance Min ~ Max: in (mm) 5.2 ~ 15.1 (132 ~ 383) 3R MACRO Chuck
Minimum Command Unit / Resolution: in (mm) .00001 / .000002 (.0001 / .00005)
Rapid Travel Speed: in/min. (mm/min.) 275.5 (7)
High-Speed Jump Maximum: in/min. (m/min.)[G] 984 (25)[1.6]
Linear Scale Resolution X, Y, Z-Axis Std.: µm 0.05
Filters / Type 1 pc. / Paper Cartridge
Filter Tank Capacity: gal (L) 58 (220)
Machine System Dimensions W x D: in (mm) 60.2 x 75.2 (1,530 x 1,910)
Machine Installed Height: in (mm) 84.3 (2,141)
Machine System Weight: lb. (kg) 4,409 (2,000)
C-Axis Min. Indexing Angle / Drive Unit .001º / .001º
C-Axis RPM Range 1 ~ 30
Fluid Temp. Control Chiller FTS Standard
Optional Internal Spindle RPM Range 1 ~ 1,500
Automatic Tool Changer Options MVH-20
Power Requirements [KVA] 200/220 VAC ±5% [7 w GV80P, 10 w GV120P]
Compressed Air Requirements 2.7 cu.ft./min @ 90-100 psi
