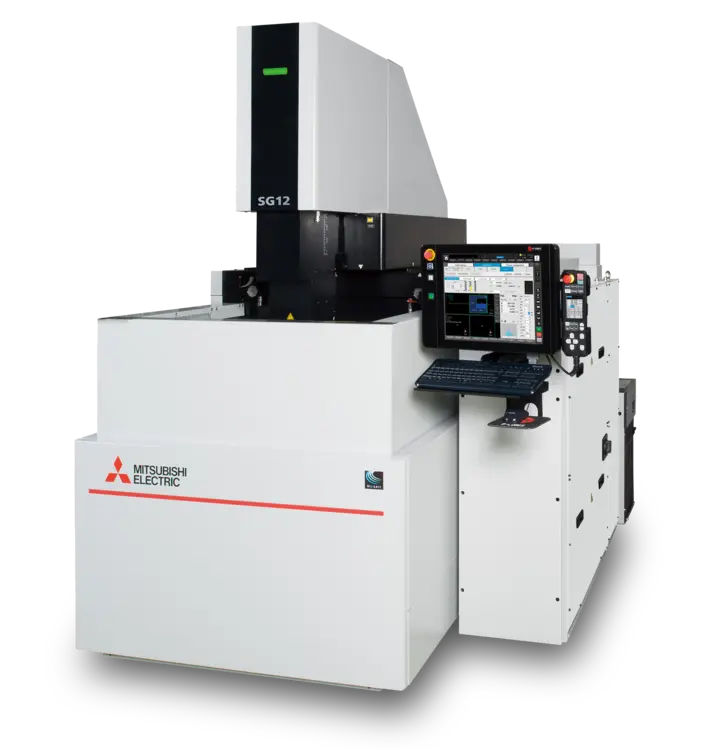

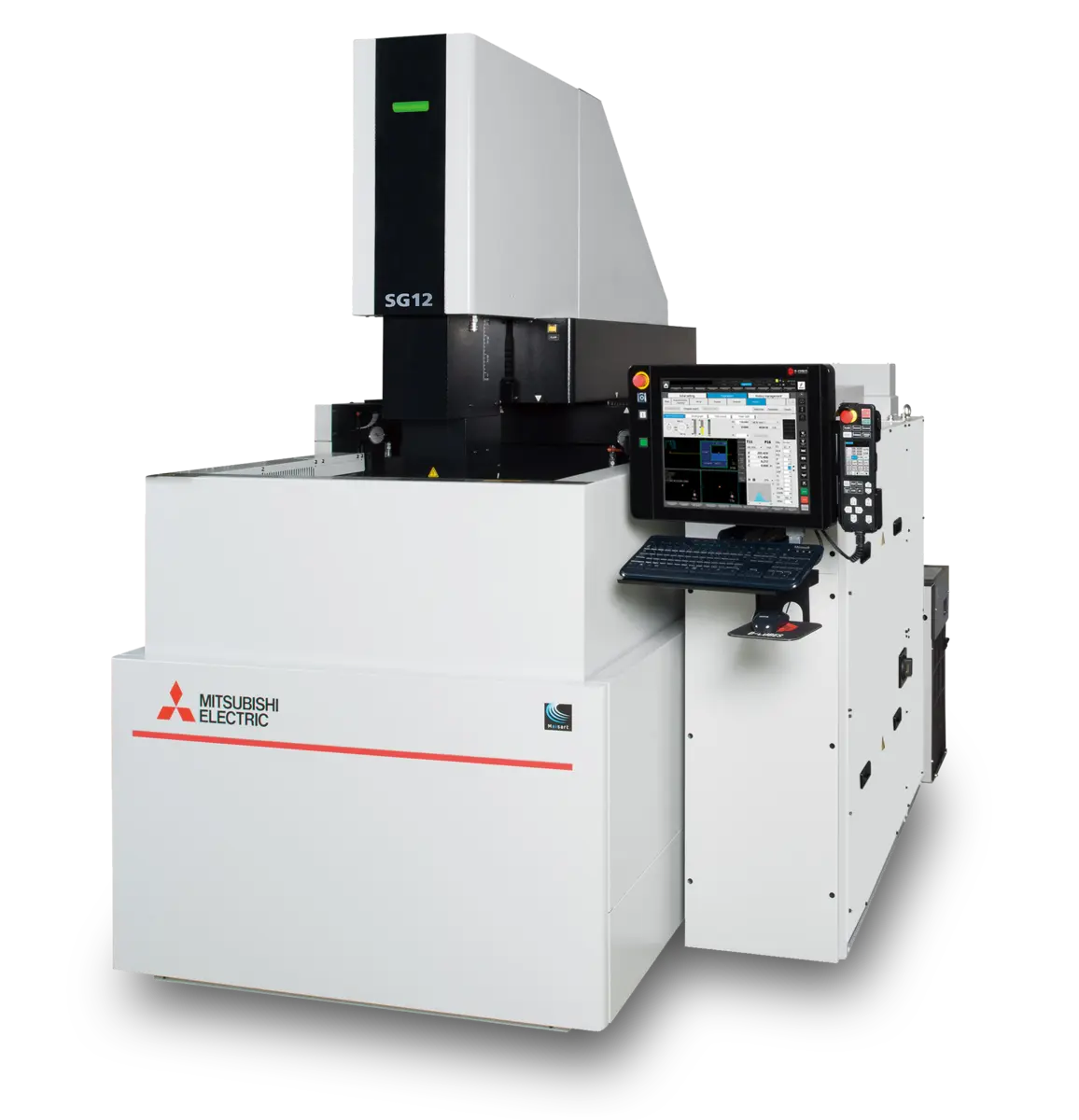

Mitsubishi EDM SG12 SINKER EDM
Have one to sell?
ConditionNew
New
Discover the Mitsubishi SG Series SG12, a cutting-edge, artificial intelligence-infused powerhouse engineered for high-precision applications that demand tight tolerances. This advanced machine melds AI intelligence with the stalwart reliability of Mitsubishi technology to deliver unmatched accuracy and productivity in demanding machining environments.
Equipped with the intuitive Mitsubishi M800 control system, the SG12 features a user-friendly 19-inch touchscreen display that simplifies complex tasks and enhances machine operability. Its innovative 3-sided drop tank design allows for effortless access, streamlining setup and maintenance processes to boost workflow efficiency.
The core of the SG12’s performance lies in its GV80 amp power supply, with an optional GV120 amp upgrade available for enhanced power capabilities. The integration of groundbreaking AI and IDPM3 technology not only boosts performance but also significantly cuts down on electrode wear, thereby extending tool life and reducing operational costs.
Ideal for industries ranging from aerospace to medical manufacturing, and automotive tooling, the SG12 supports operators at all skill levels with its seamless, intuitive user experience. Experience the precision and reliability that redefine industry standards and push the boundaries of machining possibilities with the Mitsubishi SG Series SG12.
Machine Travels: X x Y x Z in (mm) 15.7 x 11.8 x 11.8 (400 x 300 x 300)
Max. Dielectric Fluid Level: in (mm) 2.6 ~ 15.7 (66 ~ 400)
Power Supply (Option) / Peak Current GV80P / 80 AMPs
Internal Worktank Dimensions: W x D x H in (mm) 37.4 x 27.5 x 17.7 (950 x 700 x 450)
Max. Workpiece Weight: lb (kg) 2,200 (998)
Table Dimensions: W x D in (mm) 27.5 x 19.7 (700 x 500)
Max. Electrode Weight: lb (kg) 110 (50)
Table to Platen Distance Min.~ Max.: in (mm) 7.9 ~ 19.7 (200 ~ 500)
Table to C Axis Chuck Distance Min.~ Max.: in (mm) 7.9 ~ 19.7 (200 ~ 500) EROWA ITS Chuck
Table to C Axis Chuck Distance Min.~ Max.: in (mm) 7.2 ~ 19.0 (183 ~ 483) 3R MACRO Chuck
Filters / Type 2 pc. / Paper Cartridge
Machine System Weight: lb (kg) 7,716 (3,500)
C Axis Min. Indexing Angle / Drive Unit 0.001 ̊/ 0.001 ̊
C Axis RPM Range 1 to 30
Fluid Temp. Control Chiller FTS (Standard)
Floor to table level distance: in (mm) 35.4 (900)
Machine Unit Dimensions: W x D x H in (mm) 60.2 x 78.7 x 82.9 (1,530 x 2,000 x 2,106)
Control Unit Program Support Function E.S.P.E.R II
Control Unit Machining Function IDPM 3/Orbit Pro
Control Unit Graphic Display Function 19” TFT color LCD
Control Unit CPU / Type M800 Series / Industrial PC
Dielectric Fluid System Reservoir Capacity: gal (L) 124 (470)
Installation Dimensions: W x D in (mm) 110.6 x 122.0 (2,810 x 3,099)
Machine structure Fixed table/traveling column
C Axis Max. Electrode Weight:lb (kg) 110/22 (50/10)
