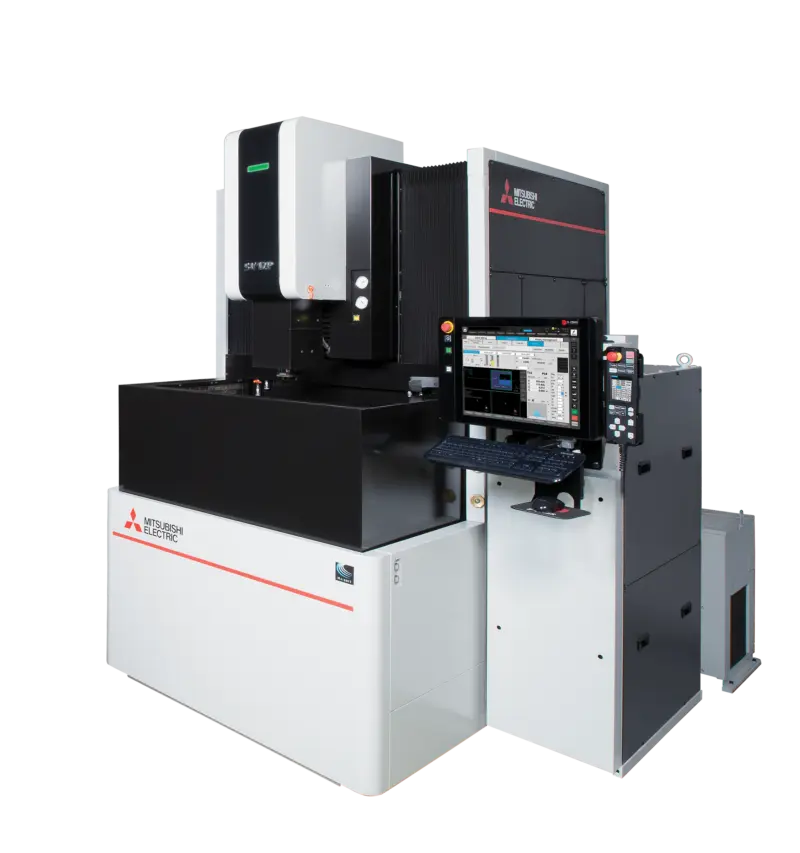

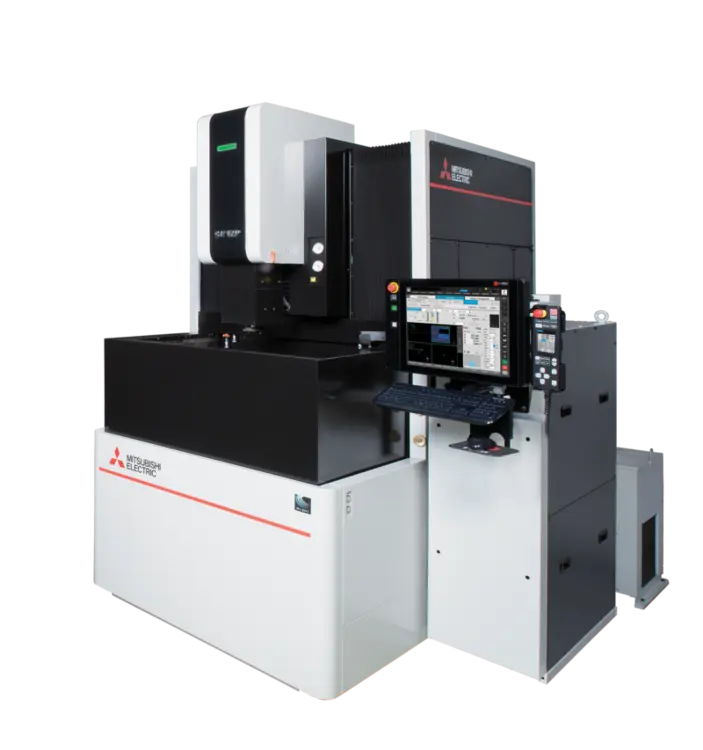

Introducing the Mitsubishi EDM SV12P, an artificial intelligence-infused powerhouse designed for precision mold- and die-making that demands tight tolerances. This advanced machine expertly combines accuracy, temperature management, and productivity, ensuring unmatched performance in every operation.
More than just a sinker EDM, the SV12P excels in delivering ultra-fine, high-quality work and is capable of efficiently machining exotic materials, making it a versatile asset for a variety of industrial applications. Its ergonomic design and easy access simplify operation for users of all skill levels. Equipped with onboard AI and cloud-based monitoring systems, the SV12P enhances operational efficiency and simplifies complex tasks.
With the SV12P, your business can achieve substantial benefits: increased productivity, reduced resource usage, and lower operational costs. Consistently produce top-tier results with minimal maintenance downtime. Propel your business forward with this cutting-edge technology, engineered to excel in the most demanding machining environments and to set new standards in precision and efficiency.
Machine Travels X x Y x Z: in (mm) 15.7 x 11.8 x 11.8 (400 x 300 x 300)
Maximum Workpiece Size W x D x H: in (mm) 35.4 x 25.6 x 13.8 (900 x 650 x 350)
Max Dielectric Fluid Level: in (mm) 2.6 ~ 15.7 (65 ~ 400)
Power Supply (Option) / Peak Current GV80P / 80 AMPs (GV120P / 120 AMPs)
Internal Worktank Dimensions W x D x H: in (mm) 37.4 x 27.5 x 17.7 (950 x 700 x 450)
Worktank / Door Type 3-Sided Drop Tank
Max. Workpiece Weight: lb. (kg) 2,200 (1,000)
Table Dimensions W x D: in (mm) 27.5 x 19.7 (700 x 500)
Max. Electrode Weight on Platen: lb. (kg) 176.5 (80)
Table to Platen Distance Min ~ Max: in (mm) 7.9 ~ 19.7 (200 ~ 500)
Table to C-Axis Chuck Distance Min ~ Max: in (mm) 7.9 ~ 19.7 (200 ~ 500) EROWA ITS Chuck
Table to C-Axis Chuck Distance Min ~ Max: in (mm) 7.2 ~ 19.0 (183 ~ 483) 3R MACRO Chuck
Minimum Command Unit / Resolution: in (mm) .00001 / .000002 (.0001 / .00005)
Rapid Travel Speed: in/min. (mm/min.) 275.5 (7)
High-Speed Jump Maximum: in/min. (m/min.)[G] 984 (25)[1.6]
Linear Scale Resolution X, Y, Z-Axis Std.: µm 0.05
Filters / Type 2 pc. / Paper Cartridge
Filter Tank Capacity: gal (L) 124 (470)
Machine System Dimensions W x D: in (mm) 110.6 x 122.0 (2,810 x 3,100)
Machine Installed Height: in (mm) 93.7 (2,380)
Machine System Weight: lb. (kg) 7,716 (3,500)
C-Axis Min. Indexing Angle / Drive Unit .001º / .001º
C-Axis RPM Range 1 ~ 30
Fluid Temp. Control Chiller Standard
Optional Internal Spindle RPM Range 1 ~ 1,500
Automatic Tool Changer Options MVH-40
Power Requirements [KVA] 200/220 VAC ±5% [7 w GV80P, 10 w GV120P]
Compressed Air Requirements 2.7 cu.ft./min @ 90-100 psi
