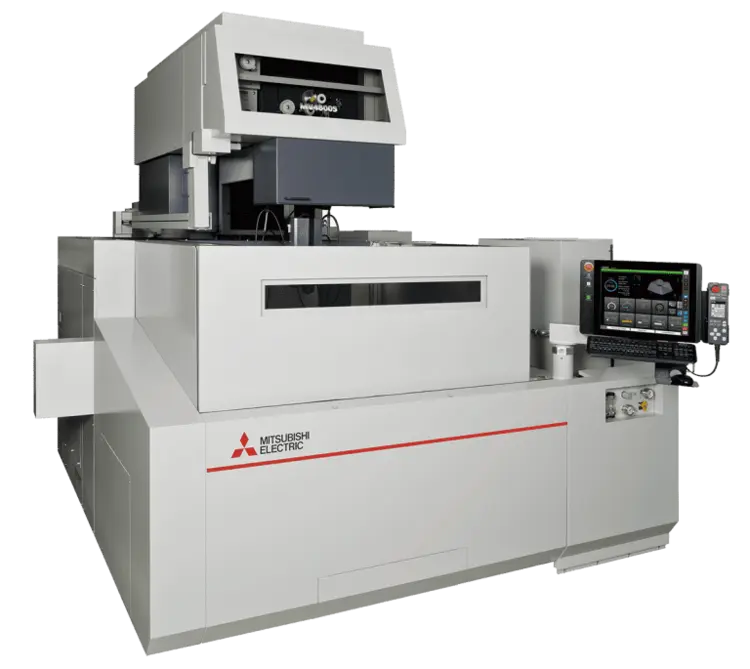

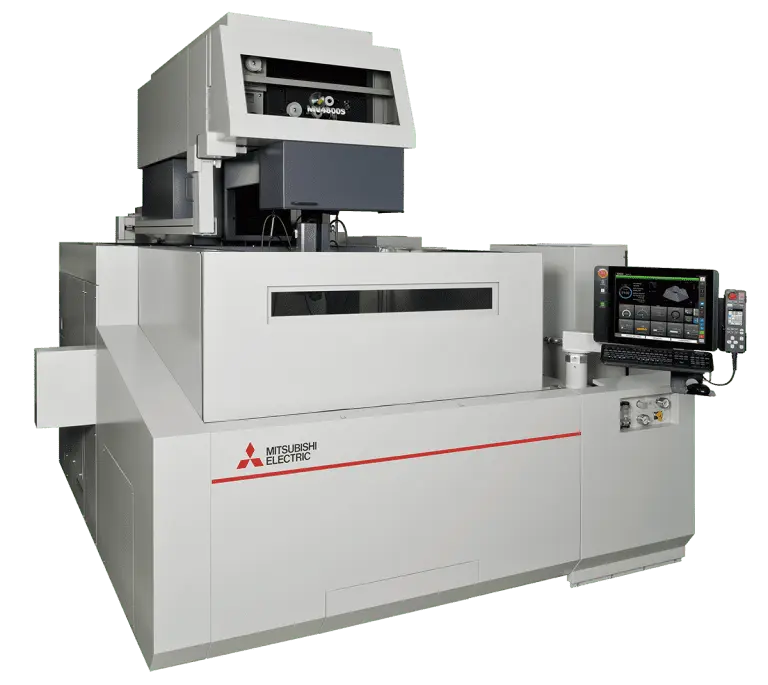

New - Build-To-Order MITSUBISHI EDM MV4800-S ADVANCE TYPE M800 | Wire EDM
Have one to sell?
ConditionNew
New
Enhance your machining precision with the Mitsubishi MV4800-S Advance M800, featuring unparalleled capabilities for submerged cutting up to 20.0 inches deep. This state-of-the-art wire EDM machine is equipped with the industry's leading auto-threading system, setting new standards for accuracy and efficiency in complex machining tasks.
The MV4800-S Advance M800 boasts an impressive annealing length of over 27 inches, facilitating reliable threading at the maximum workpiece height and even through gaps for effective broken wire recovery. This feature is particularly crucial for maintaining continuity in production, especially in industries such as aerospace engineering and electronic components manufacturing where precision is paramount.
With its advanced capabilities, the MV4800-S Advance M800 is perfectly suited for handling intricate and demanding tasks in challenging industrial environments. It ensures exceptional performance and adaptability, making it a valuable asset for manufacturers aiming to enhance their operational efficiency and product quality.
Maximum Workpiece Dimensions:
W x D x H in (mm) 53.1 x 43.3 x 20.0 (1350 x 1100 x 500)
Max. Submerged Workpiece Weight:
lb (kg) 6600 (3000)
Table Dimensions:
in (mm) 45.3 x 38.4 (1150 x 975)
U/V Travels (from center):
in (mm) ±4.0 x ±4.0 (±100 x ±100)
Taper Angle @ Thickness:
in (mm) 15 deg.@ 14.3 (15 deg.@ 365)
Wide Angle Taper (Optional Guides Required)
45 deg. @ 2.4″ (No AT Possible)
