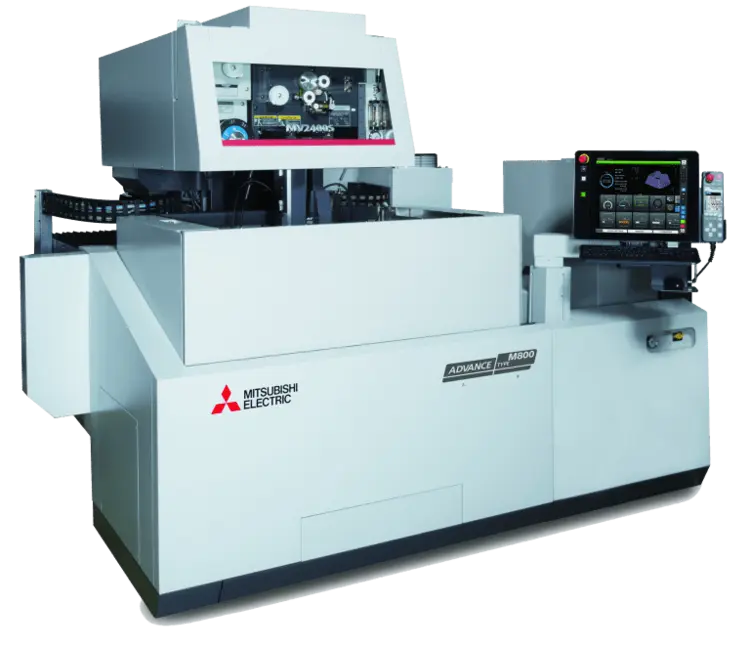

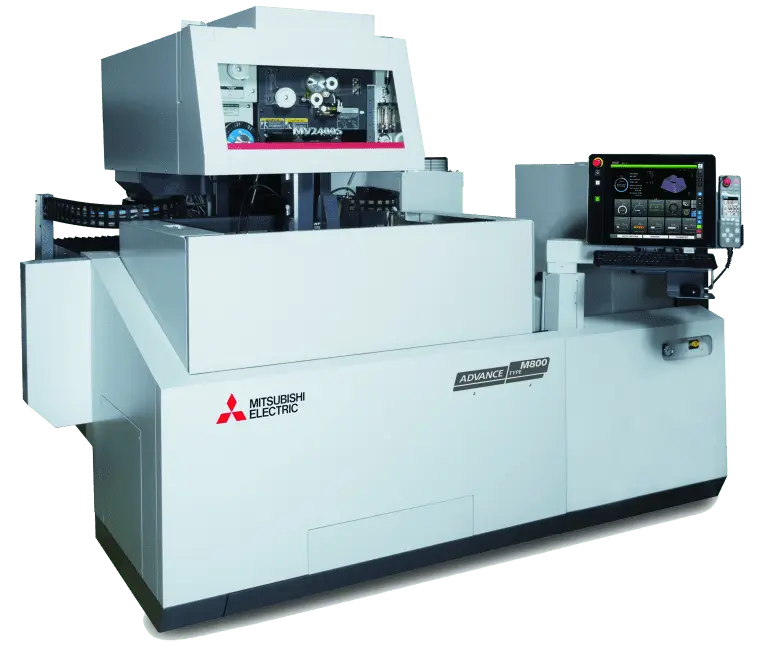

New MITSUBISHI EDM MV2400-S ADVANCE TYPE M800 | Wire EDM
ConditionNew
New
Discover precision and innovation with the MV2400-S Advance Type M800, a leader in the cutting-edge wire EDM series known for its user-friendliness and technological superiority. This machine is engineered with the non-contact Cylindrical Drive System on the X & Y axis drives, ensuring highly reliable and smooth operations. Ideal for sectors that demand utmost precision and quality, such as aerospace, electronics, and fine mold manufacturing, the MV2400-S excels in delivering unparalleled accuracy and exceptional surface finishes. Embrace the advanced capabilities of the MV2400-S Advance Type M800, where meticulous detailing meets robust technology, setting new standards in the wire EDM industry.
Maximum Workpiece Dimensions:
W x D x H in (mm) 41.3 x 32.3 x 12.0 (1050 x 820 x 305)
Max. Submerged Workpiece Weight:
lb (kg) 3307 (1500)
Table Dimensions:
in (mm) 33.0 x 22.0 (840 x 560)
U/V Travels (from center):
in (mm) ±3.0 x ±3.0 (±75 x ±75)
Taper Angle @ Thickness:
in (mm) 15 deg.@ 10.2 (15 deg.@ 260)
Wide Angle Taper (Optional Guides Required)
45 deg. @ 2.4″ 60mm (No AT Possible)
