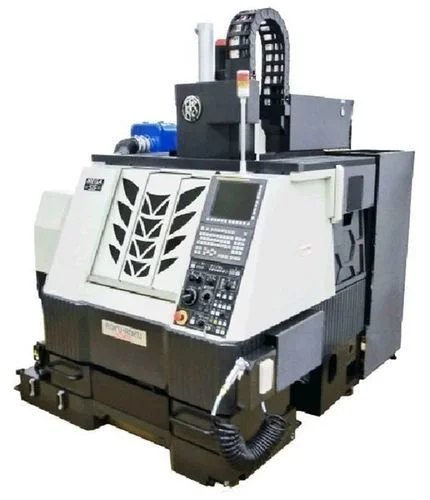

Elevate your machining operations with the MEGA SSS family of VMC machines, the preferred solution for ultra-precise micro-machining and small-hole drilling. Designed to handle the most demanding tasks, these machines offer fast, accurate results down to the thousandth of a millimeter, perfecting your projects with unmatched precision. The MEGA SSS machines, available in 40,000 RPM and 60,000 RPM models, excel in reducing cycle times while maintaining impeccable precision, making them ideal for micro-accuracy machining that requires intricate detailing. Equipped with a flexible and intuitive CNC controller, the MEGA SSS family allows operators to effortlessly achieve superior levels of quality and performance. These machines are versatile enough to handle everything from small-hole drilling to complex micro-machining, ensuring reliable and consistent results that enhance your shop's productivity and capabilities. Opt for the MEGA SSS VMC machines and witness how precision engineering can revolutionize your production, setting new standards in precision and performance.
Machine Travels: X x Y x Z in (mm) 16.1 x 13.0 x 7.9 (410 x 330 x 200)
Spindle Speed SSS-400 (SSS-600) 3,000 ~ 40,000 (3,000 ~ 60,000)RPM
Spindle HP 4.7
Spindle Lubrication Oil Mist
Tool Changer Size 20 Position Standard
Positioning Accuracy/Repeatability: in (μm) ±0.000040/±0.000012 (±1.0/±0.3)
Table Work Area X x Y: in (mm) 23.6 x 13.0 (600 x 330)
Table to Spindle Nose Distance: in (mm) 1.97 ~ 9.84 (50 ~ 250)
Max. Workpiece Weight: lb (kg) 220 (100)
Coolant Tank Capacity: gal (L) 20 (75)
Table Height from Floor: in (mm) 29.5 (750)
Actual Measured Circularity (2.0″ dia. @8 IPM): in (μm) 0.000039 (1.0)
Spindle Taper HSK-E25
Spindle Air Purge Standard
Air Blast through Spindle NA
Oil Mist with Collector Optional
Linear Scales X, Y, Z – axes Heidenhain 0.000002mm Standard
Rapid Traverse Speed: in/min. (m/min.) 590 (15.0)
Cutting Speed (Normal Mode): in/min. (mm/min.) 0.04 – 394 (1 ~ 10,000)
Cutting Speed (GR Super PC Mode): in/min. (m/min.) 590 (1.5)
Dust Collection System NA
Machine Weight: lb (kg) 5732 (2600)
Machine Height: in (mm) 82.3 (2090)
Required Floor Space [Machine Unit]: in (mm) 74.4 x 78.7 (1890 x 2000)
Control Unit Fanuc 31i-B5 Super High-Speed Processor and Al Contour Control II
Power Requirements KVA 200 ~ 220V 14.0KVA
Air Supply 9 cu.ft./min @ 72 psi
CAPABILITIES:
Well suited to both small-hole drilling and micro-fine milling due to its “super hybrid concept” design
Delivers high-speed, high-precision machining with greater stability due to its high-rigidity structure
Wide speed range (3,000 through 40,000 RPM) via an oil-mist lubricated spindle and a long-life AC motor
COMPONENTS:
High-rigidity HSK-E25 tool holders
Z axis balance cylinder
USER INTERFACE:
Fanuc 31i-B5 super high-speed processor with AI Contour Control II and NANO interpolation
