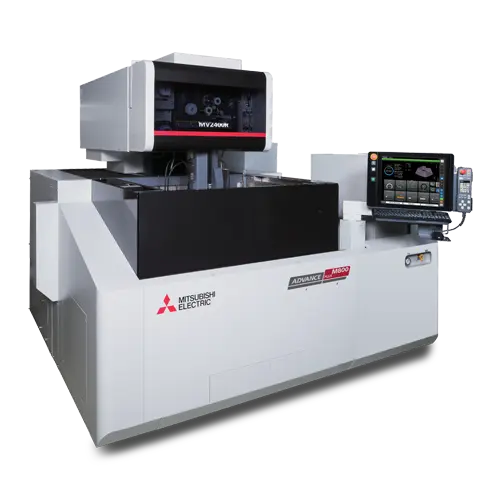

New - Build-To-Order MITSUBISHI EDM MV2400-R ADVANCE PLUS M800 | Wire EDM
Have one to sell?
ConditionNew
New
Elevate your machining precision with the Mitsubishi MV2400-R from the renowned MV-R series, setting industry standards in wire EDM technology. This model is crafted to enhance your production with its robust machine construction that significantly increases rigidity and accuracy. Featuring an advanced auto-threading system, the MV2400-R simplifies and accelerates the threading process, thereby enhancing overall productivity. Its cutting-edge internal communication systems ensure seamless operation synchronization, while innovative power supply technology optimizes performance and cuts operational costs.
Ideal for sectors that prioritize meticulous accuracy and cost efficiency, such as aerospace, automotive, and tool and die manufacturing, the Mitsubishi MV2400-R stands out by providing unmatched precision and operational excellence. Discover how the MV2400-R can transform your production capabilities, making every cut count with superior efficiency and precision.
Maximum Workpiece Dimensions:
W x D x H in (mm) 41.3 x 32.3 x 12.0 (1050 x 820 x 305)
Max. Submerged Workpiece Weight:
lb (kg) 3307 (1500)
Table Dimensions:
in (mm) 33.0 x 25.2 (840 x 640)
U/V Travels (from center):
in (mm) ±3.0 x ±3.0 (±75 x ±75)
Taper Angle @ Thickness:
in (mm) 15 deg.@ 10.2 (15 deg.@ 260)
Wide Angle Taper (Optional Guides Required)
45 deg. @ 2.4″ 60mm (No AT Possible)
