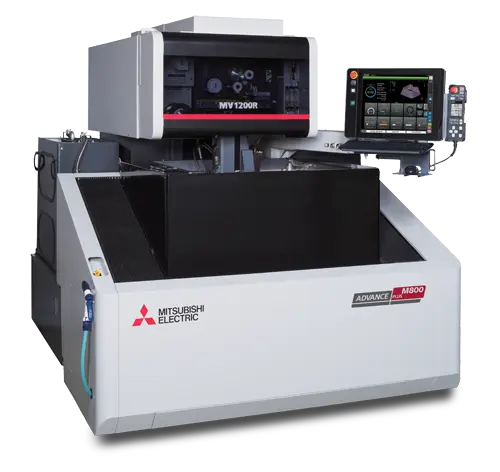

Explore the Mitsubishi MV1200-R Advance Plus M800, the forefront of wire EDM technology, featuring the sophisticated Mitsubishi M800 series control. This advanced machine is equipped with a user-friendly, 19-inch touchscreen interface, designed to enhance operational ease similar to a smartphone's usability. Mitsubishi's dedication to innovation shines through the MV1200-R, crafted to provide unmatched performance and reliability.
Ideal for demanding professionals in industries such as aerospace, automotive, and precision manufacturing, the MV1200-R Advance Plus M800 redefines quality in the machining sector. Its precision engineering and user-centric design not only ensure superior output but also improve the overall user experience, streamlining operations and enhancing productivity. Choose the MV1200-R Advance Plus M800 for top-tier performance that meets the rigorous standards of modern manufacturing.
Maximum Workpiece Dimensions:
W x D x H in (mm) 31.9 x 27.6 x 8.5 (810 x 700 x 215)
Max. Submerged Workpiece Weight:
lb (kg) 1102 (500)
Table Dimensions:
in (mm) 25.2 x 21.3 (640 x 540)
U/V Travels (from center):
in (mm) ±2.4 x ±2.4 (±60 x ±60)
Taper Angle @ Thickness:
in (mm) 15 deg.@ 8.0 (15 deg.@ 200)
Wide Angle Taper (Optional Guides Required)
45 deg. @ 1.8″ 45mm (No AT Possible)
