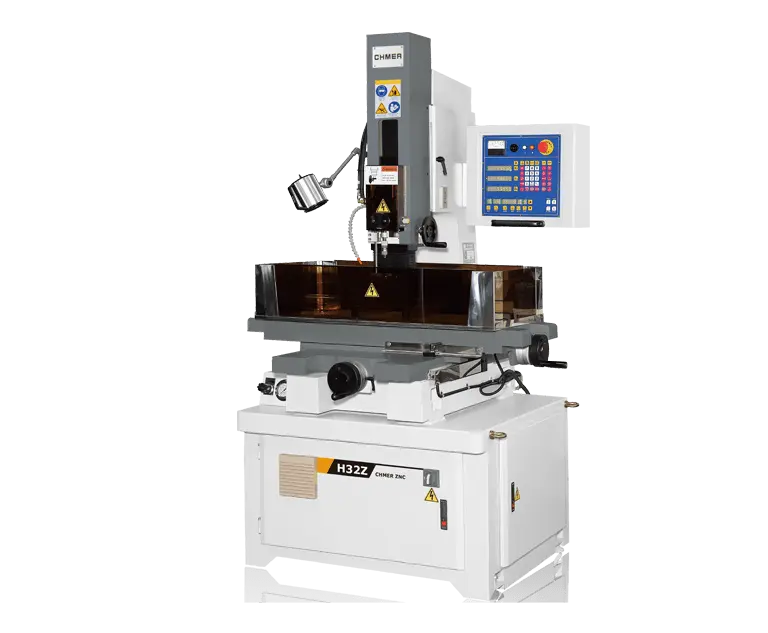

CHMER H32Z ZNC Manual EDM Driller
EDM Hole Drilling Machines
Discover the precision and versatility of the CHMER H32Z ZNC Manual EDM Hole-Driller, designed to tackle the most challenging drilling tasks. Equipped with 3-axis Digital Readouts (DROs), this machine excels in drilling hard materials and angled surfaces, ensuring accuracy and ease of operation. With features like metric/inch conversion and programmable Z-axis depth, the CHMER H32Z offers flexibility to accommodate various machining requirements. Ideal for industries demanding meticulous attention to detail, this hole-driller combines robust functionality with user-friendly controls to enhance productivity and performance in any machining environment.
| Work-W | 23.6" |
| Work-L | 11.8" |
| X | 13.8" |
| Y | 9.8" |
| Z | 5.9" |
| Control | CNC |
| Dimensions | 43.3" x 43.3" x 84.6" |
| Weight | 1320 lbs. |
Model Unit H32Z
Max. Work Piece (WxDxH) mm 610x420x250
Max. Work Piece Weight kg/lb 3180 / 396
Table travels (XxY) mm 300x250
Ram Servo Travel (Z1) mm/inch 340 / 13.3
Work Head Travel (Z2) mm/inch 200 / 7.8
Guide Travel mm/inch 150 / 5.9
Max. Length of Tube Electrode mm/inch 400 / 15.7
Workbench to eye mask seat distance mm 100-250
Machine Size mm 1523x1183x2158
Net Weight kg 830
• Drill small diameter holes through hardened tool steel and carbide.
• Depth to diameter ratios>100(i.e.,.020 dia.>2" deep.)
• Enter on curved or angled surfaces.
• Dielectric is distilled water.
• 3-axis DROs.
• Edge finding and hole center finding.
• Inch/ metric switchable. • Z depth programmable.
• 99 built-in power settings plus operator programmed power settings (s-codes).
