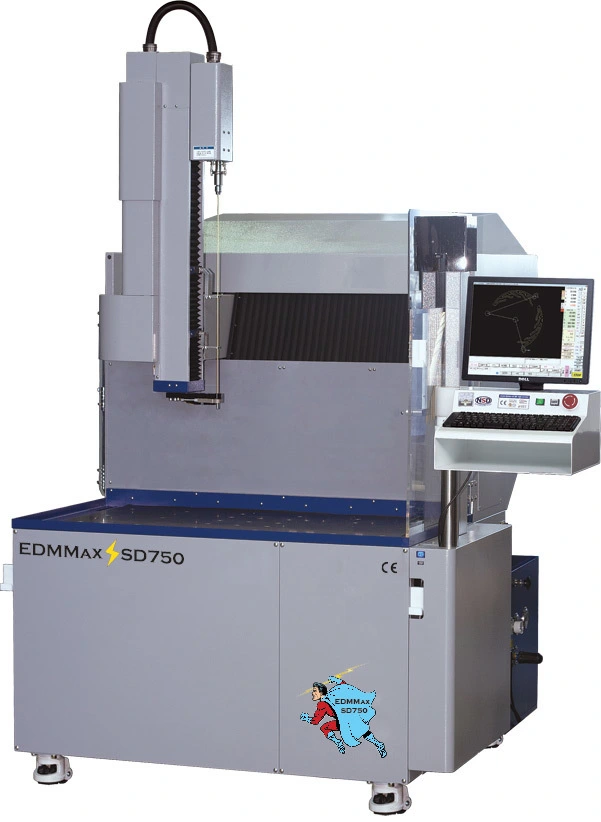

EDMMAX SD750
EDM Hole Drilling MachinesDiscover the EDMMAX SD750 EDM Hole-Driller, engineered for precision and capacity. This powerful machine efficiently handles hole sizes ranging from 0.01" to 0.12", making it perfect for a variety of demanding applications. With a robust workpiece capacity of 1100 lbs, the SD750 is designed to accommodate large and heavy materials, providing reliable performance in industries where precision is critical. Ideal for operations requiring meticulous attention to detail, the EDMMAX SD750 delivers unmatched drilling accuracy and is a valuable asset for any manufacturing environment looking to enhance productivity and precision.
Hole-Dia. (Min) | 0.01" |
Hole-Dia. (Max) | 0.12" |
Work-W | 45" |
Work-L | 22.8" |
X | 29.5" |
Y | 17.7" |
Z | 27.5" |
Control | CNC |
Dimensions | 76.4" x 79.2" x 88.2" |
Weight | 3,740 lbs. |
Tables (X x Y) 25.6" x 17.7"
W - Electrode Travel 27.6"
Z - Guide Travel 14.2"
Maximum Work Piece Size 45" x 22.8"
Maximum Distance Table to Guide 3.6" - 17.8"
Work Piece Weight 1100 lbs.
Electrode Diameter .012"-.124"
Maximum Electrode Length 28"
Machine Weight 3520 lbs.
Machine Dimensions 76" x 79" x 90.5"
Power Supply 60A
Automatic Electrode Charger (AEC) 15 (32 opt.)
Automatic Guide Changer (AGC) 4 opt.
Work Tank Size 34 gal.
Power Input 220/3/60 6kVA
