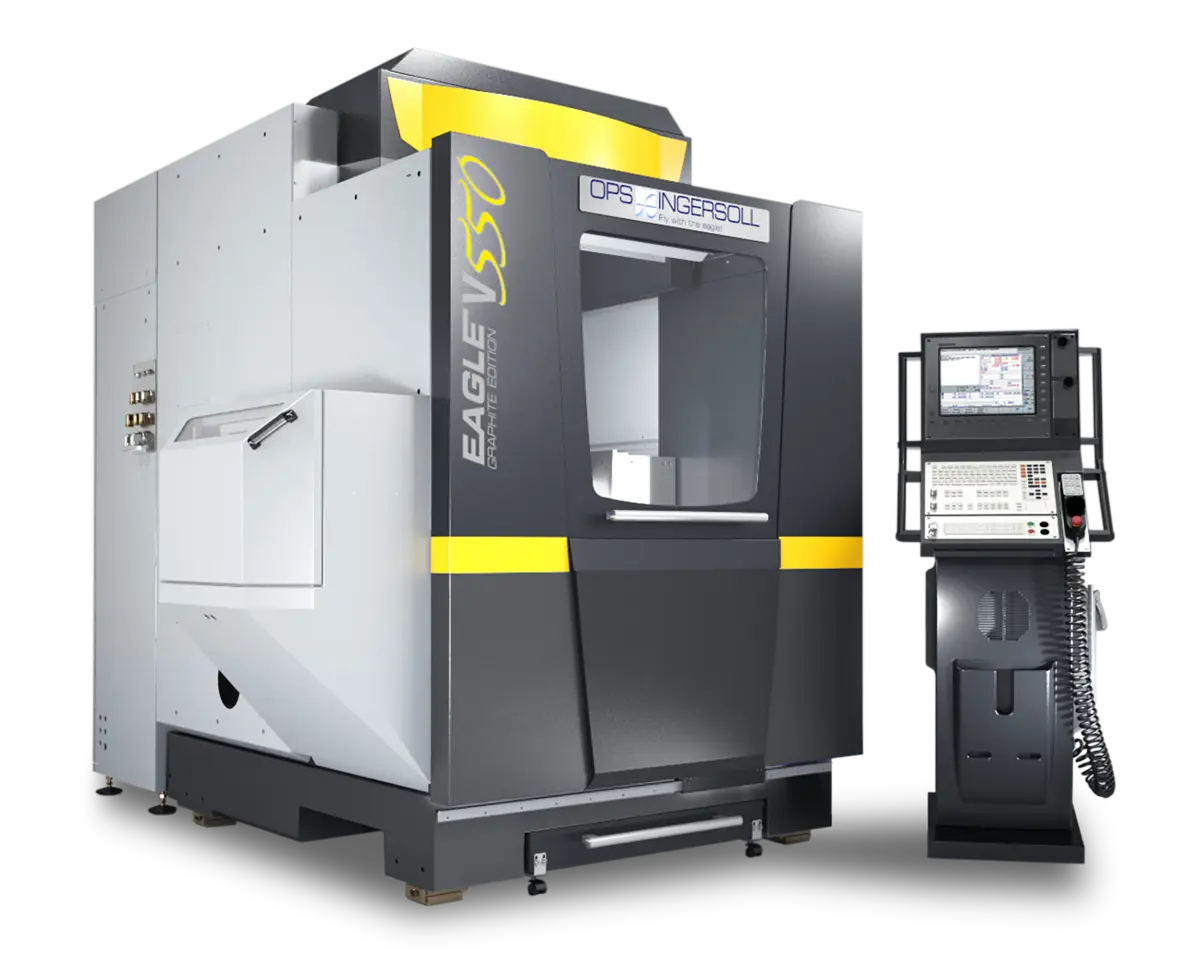

INGERSOLL Eagle V550 3-Axis Graphite Machining Center
Vertical Machining Centers
Experience unparalleled precision with the INGERSOLL Eagle V550 3-Axis Graphite Machining Center, crafted for superior vertical milling. This state-of-the-art machining center combines cutting-edge technology with a robust design to provide exceptional accuracy in detailed machining tasks. Ideal for intricate graphite machining, the Eagle V550 ensures your production is not only efficient but also remarkably precise. With its advanced features, this machine is perfect for industries requiring the utmost detail and quality in their machining processes. Unlock the potential of precision with the Eagle V550 and elevate the capabilities of your manufacturing operations.
| X | 21.65" |
| Y | 15.7" |
| Z | 15.7" |
| Power | 20 hp |
| RPM | 42,000 RPM |
| # ATC | 32 |
| Taper | HSK-E40 |
| # Axis | 3 |
| Control | CNC |
| Dimensions | 79.3" x 108" x 96" |
| Weight | 15,874 lbs. |
X x Y x Z-Axis Travel inch 21.65 x 15.7 x 15.7
Work Table Size inch 25.6 x 19.7
Max. Table Load Capacity lb. 1100
Max. Table Workpiece Height inch 15.7
T-Slots (No. x Width x Distance) mm 4 x 14 H12
Spindle nose to fixed table inch 1.96 ~ 17.72
Spindle
Spindle speed rpm 42,000 (STD)
Automatic tool changer
Tool number 32 (STD)
Tool-to-Tool Change Time sec 10
Max. Tool Diameter Inch/mm .630” / (16mm)
Max. tool length inch 10.2
Max. tool weight lb 4.4
ATC type Disc Style ATC
Tool shank HSK-E40 (STD)
Motor
Spindle motor HP 20.0
X/Y/Z servo motor HP (2x) 3.6/(2x) 3.6/(1X) 3.6
Rapid speed
X/Y/Z rapid speed in/min 1181
Acceleration ft/s2 49.2
Cutting federate (max) in/min 1181
Controller
Heidenhain TNC-640
Miscellaneous
*3-Axis Static Laser Measured Positioning Accuracy X,Y,Z inch .000197” Full Travel
*3-Axis Static Laser Measured Repeatability X,Y,Z inch .000118” Full Travel
Heidenhain Glass Scale Resolution Inch / (MM) 0.0000003937 (.00001 mm)
Machine weight lb 15,874
Power requirement V / KVA 400 / 30
Compressed Air Requirement Cu.ft./min. 31.8
Available Coolant Method ATC Mist Lube is (OPTIONAL)
Air source psi 130
Machine Foot Print W, D, H inch 79.3 x 108 x 96
• Travels: X, Y, Z: 21.5” x 15.75” x 15.75”
• Rapid Traverse: - 1181 in/min (X, Y, Z)
• Max Acceleration: 49 ft/s²
• HF Spindle 20 hp, 42,000 RPM, HSK-E40, 32 pos ATC
• Blum Laser System for tool breakage detection and tool length/diameter compensation.
Absolute accuracy: .000039” (0.001 mm)
Repeatability .000005” (0.0003mm)
Automatic Tool Cleaning-OPTIONAL
• Vibration Dampening Sand Filled Machine Bed
• Ball Screws with Direct Drive AC Motors
• Absolute Measuring with Glass Scales
Air Purged
• Oil Mist Lubricant System, spindle external
• Air Blow System spindle external
145psi (10bar)
• Auto Lube System both drives and ways
• Full lining with dust and liquid protection
• LED Machine Lamp in work area
• Chip Tray
• Machine Shoes (leveling pads)
• Precision Package 3: Temperature-distribution compensation
Incl. - ATDC - Automatic Temperature Drift Control
