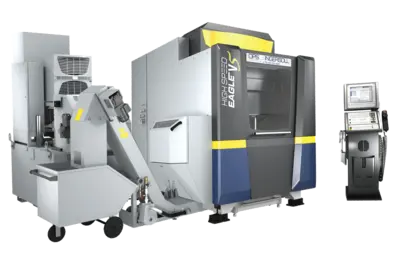

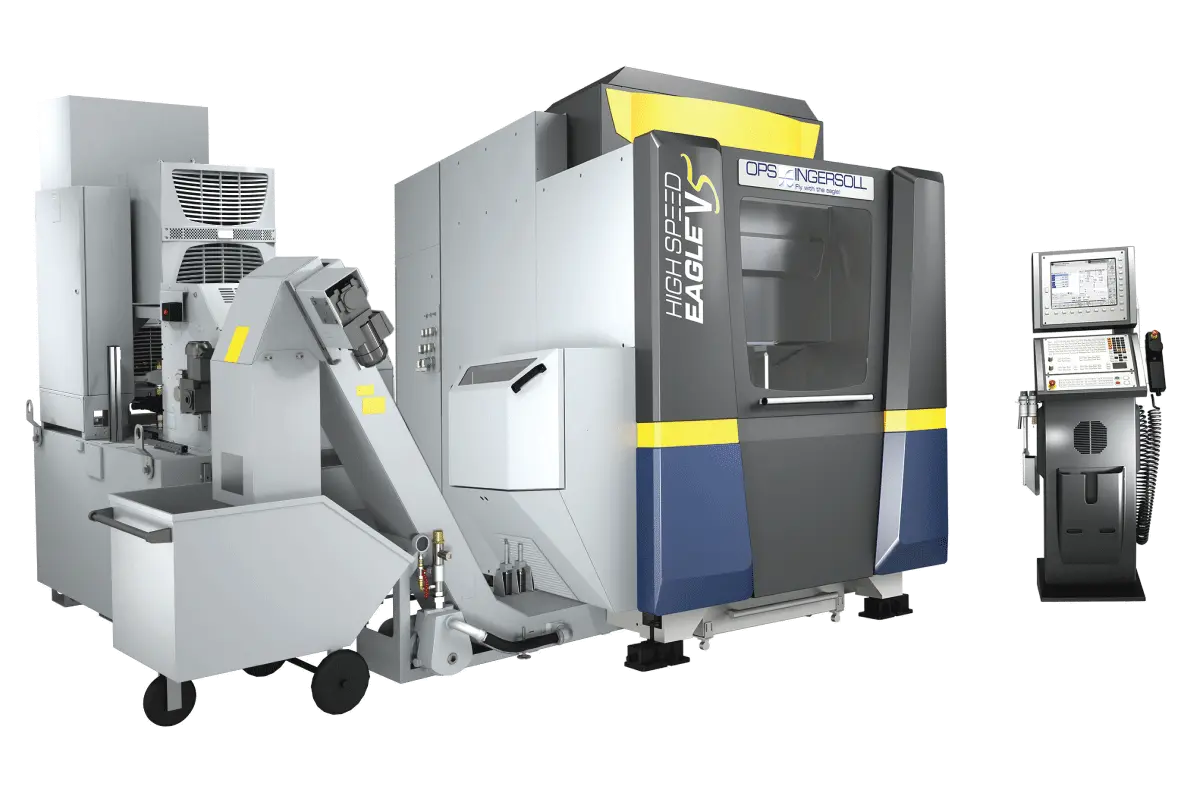

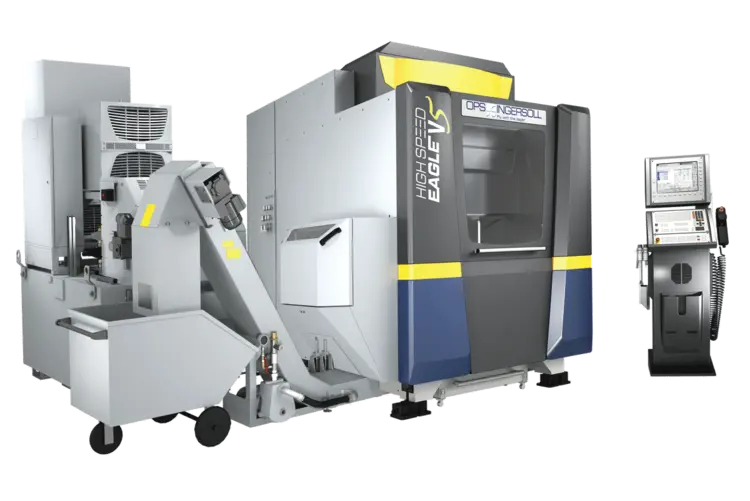

INGERSOLL Eagle V5C 3-Axis Vertical Machining Center

INGERSOLL Eagle V5C 3-Axis Vertical Machining Center

Vertical Machining Centers

INGERSOLL Eagle V5C 3-Axis Vertical Machining Center

Vertical Machining Centers
1-877-250-1770

Document (1)

Eagle-V5C-1-Page-Flyer-11-1-22.pdf

Overview

Type:
Vertical Machining Centers
Manufacturer:
INGERSOLL
Model:
Eagle V5C 3-Axis
Status:
For Sale

Elevate your machining precision with the INGERSOLL Eagle V5C, designed for top-tier performance in demanding environments. This state-of-the-art vertical machining center features a high-speed 36,000 RPM spindle and rapid traversal of 1181 in/min, ensuring swift and precise material removal. Equipped with precision laser accuracy and an advanced Heidenhain control system, the Eagle V5C is ideal for industries requiring meticulous attention to detail and speed. Whether you're tackling complex components or intricate molds, the Eagle V5C delivers unmatched accuracy and reliability, setting new standards in 5-axis machining and enhancing your production capabilities.

X21.65"
Y15.7"
Z15.7"
Power22.8 hp
RPM36,000 RPM
# ATC32
TaperHSK-E50
# Axis3
ControlCNC
Dimensions79.3" x 108" x 96"
Weight15,874 lbs.

X x Y x Z-Axis Travel inch 21.65 x 15.7 x 15.7
Max. Table Load Capacity lb. 550
Max. Table Workpiece Height inch 15.7
T-Slots (No. x Width x Distance) mm 4 x 14 H12
Spindle nose to fixed table inch 1.96 ~ 17.72
Spindle
Spindle speed rpm 36,000 (STD)
Automatic tool changer
Tool number Total 32 (STD) / 31 Actual
Probe Uses (1) pocket
Tool-to-Tool Change Time sec 10
Max. Tool Diameter Inch/mm .787” (20mm) (STD)
Max. Tool Length Inch/mm 6.3” (160mm)
Max. tool weight lb 4.4
ATC type Disc Style ATC
Tool shank HSK-E50 (STD)
Motor
Spindle motor HP 22.8
X/Y/Z servo motor HP (2x) 3.6/(2x) 3.6/(1X) 3.6
Max. load capacity lb 1100
Spindle Nose to Faceplate inch 4.75 ~ 20.4
Rapid speed
X/Y/Z rapid speed in/min 1181
Acceleration ft/s2 49.2
Cutting federate (max) in/min 1181
Controller
Heidenhain TNC-640
Miscellaneous
*3-Axis Static Laser Measured Positioning Accuracy X,Y,Z inch .000197” Full Travel
*3-Axis Static Laser Measured Repeatability X,Y,Z inch .000118” Full Travel
Heidenhain Glass Scale Resolution Inch / (MM) 0.0000003937 (.00001 mm)
Machine weight lb 15,874
5-Axis Power requirement V / KVA 400 / 36
Compressed Air Requirement Cu.ft./min. 31.8
P3 Version Coolant System Volume gal. 185
Thru Tool Coolant System psi 580
Air source psi 130
Machine Foot Print W, D, H inch 79.3 x 108 x 96

• Integrated Direct Drive 4/5th Axis System (without T-slot table)
• Travels: X, Y, Z: 21.5” x 15.75” x 15.75”
• Rapid Traverse: - 1181 in/min (X, Y, Z)
• Max Acceleration: 49 ft/s²
• HF Spindle 33.2 hp, 36,000 RPM, HSK-E50, 32 pos ATC
• Renishaw Infrared Measuring Probe
• Blum Laser System for tool breakage detection and tool length/diameter compensation.
 Absolute accuracy: .000039” (0.001 mm)
 Repeatability .000005” (0.0003mm)
 Automatic Tool Cleaning-OPTIONAL
• Vibration Dampening Polymer Concrete Machine Bed
• Ball Screws with Direct Drive AC Motors
• Absolute Measuring with Glass Scales
 Air Purged
• P3 Coolant System
o 185 Gal (700 L) Coolant System
o 580 PSI Thru Tool Coolant
o External Coolant
o Police Filter
o Belt Filter
o Chip Conveyor (Chip Bucket Optional)
• Air Blow System spindle external
 145psi (10bar)
• Oil Mist Lubricant System, spindle external
• Auto Lube System both drives and ways
• Fully Enclosed lining with dust and liquid protection
• LED Machine Lamp in work area
• Faceplate Prep Pneumatics for Workpiece Pallet System
• Machine Shoes (leveling pads)
