INGERSOLL Eagle V9G 5-Axis Vertical Graphite Machine
5-Axis Vertical Machining Centers

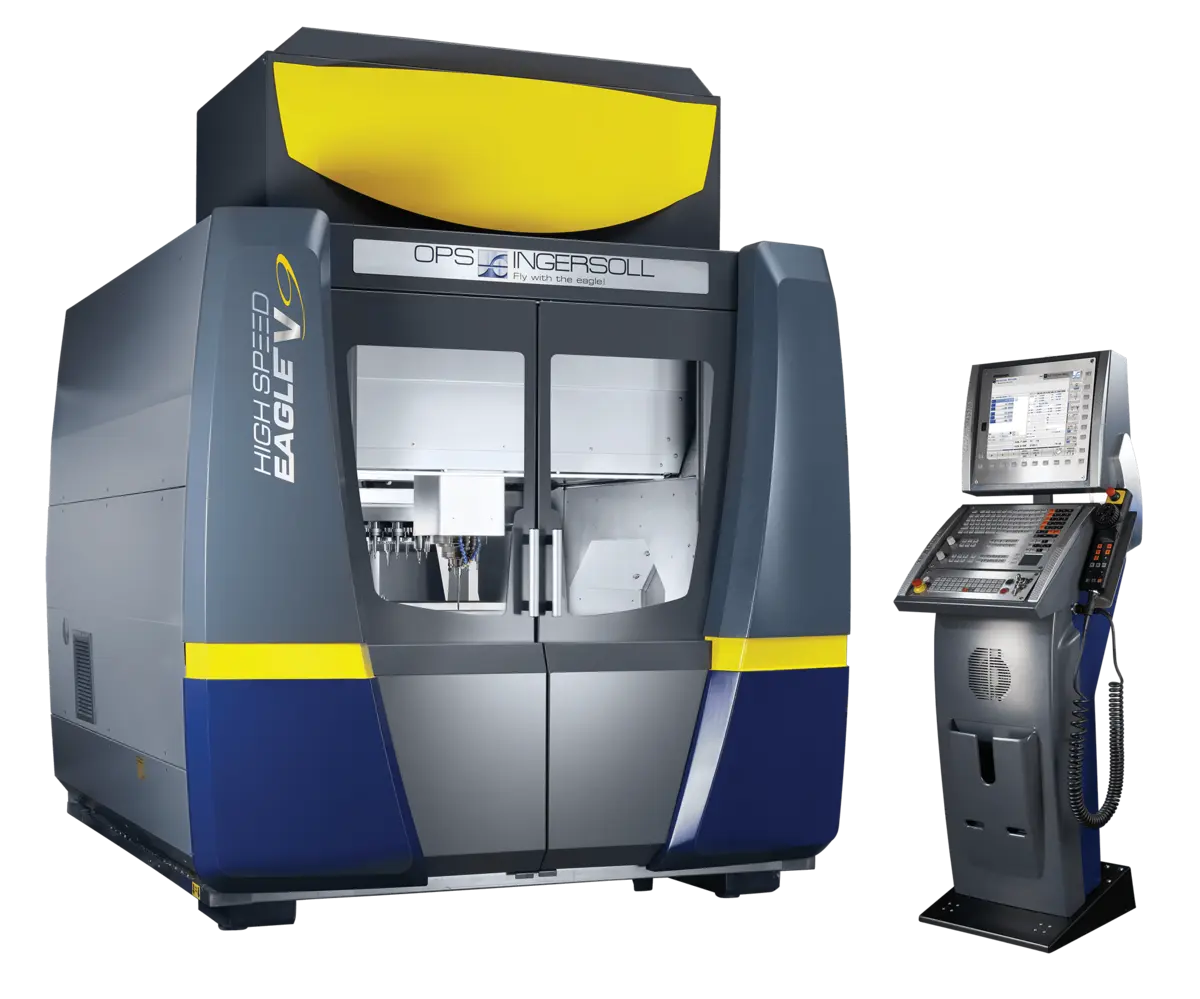

Optimize your machining capabilities with the Eagle V9, an ultra-rigid 5-axis vertical machining center that combines robust power and accessibility. Designed to handle workpieces up to 1,100 pounds on its 23.6” table surface, the Eagle V9 features the advanced Heidenhain iTNC-640 control unit, conveniently mounted on a movable pedestal to maximize ergonomic ease and precision. With a unique side opening in the casting, the V9 supports efficient robot loading from either side, accommodating pallets up to 19.7” square. Ideal for manufacturers aiming to enhance productivity while maintaining cost-effectiveness, the Eagle V9 offers the flexibility and functionality needed to deliver superior products swiftly and efficiently.
| X | 31.5" |
| Y | 23.6" |
| Z | 19.7" |
| # Axis | 5 |
| Power | 23 hp |
| RPM | 36,000 RPM |
| # ATC | 72 |
| Taper | HSK-E50 |
| Control | CNC |
| Dimensions | 85.7" x 120.6" x 112.2" |
| Weight | 25,353 lbs. |
Machine Travels: X x Y x Z in (mm) 31.5 x 23.6 x 19.7 (800 x 600 x 500)
A-Axis Tilt Range (degree) -60 ~ 140° (25)
C-Axis Rotation Range (degree) 360° (100)
Rotary Table Faceplate: dia (mm) 23.6 (600)
Max Workpiece Height: Faceplate/Pallet (mm) 21.6/19.7 (550/500)
Max Rotary Table Cap: lb (kg) 1,100 (500)
Spindle Speed 36,000 RPM
Spindle HP cont./30 min (kw) 20.4 / 23.5 HP (15.2/17.5 kw)
Spindle Nose to Table: in (mm) 2.75 ~22.4 (70 ~600)
Tool Changer Selection HSK-E50 (72 pos std)
X, Y, Z Rapid Speed: in/min (m/min) 1,181 (30)
Max Workpiece 3-axis in/lb (mm/kg) 31.5 x 23.6 x 19.7 /4,400 (800 x 600 x 500 /2,000)
Machine Weight: lb. (kg) 25,353 (11,500)
Mach Dimensions W-D-H: in (mm) 85.7 x 120.6 x 112.2 (2,180 x 3,060 x 2,850)
Precision Package 3 for 5-axis machines – Temperature-distribution compensation, including:
ATDC (Automatic Temperature Drift Control)
5-axis compensation
Heidenhain option (kinematics optional)
Ceramic ball for kinematics accord
Integrated 4/5-axis system (without T-slot table)
HF spindle 23 HP, 36,000 RPM, HSK-E50, 72-pos ATC
Renishaw infrared measuring probe
Blum laser system for tool breakage detection and tool length/diameter compensation
Double gantry drive, both X and Y axis
Vibration-dampening polymer concrete machine bed
3-point foundation setup/leveling
Ball screws with direct drive AC motors
Absolute measuring with glass scales
Oil-mist lubricant system, spindle external
3-color status light
Chip auger with transverse conveyor screw
Chip bucket
