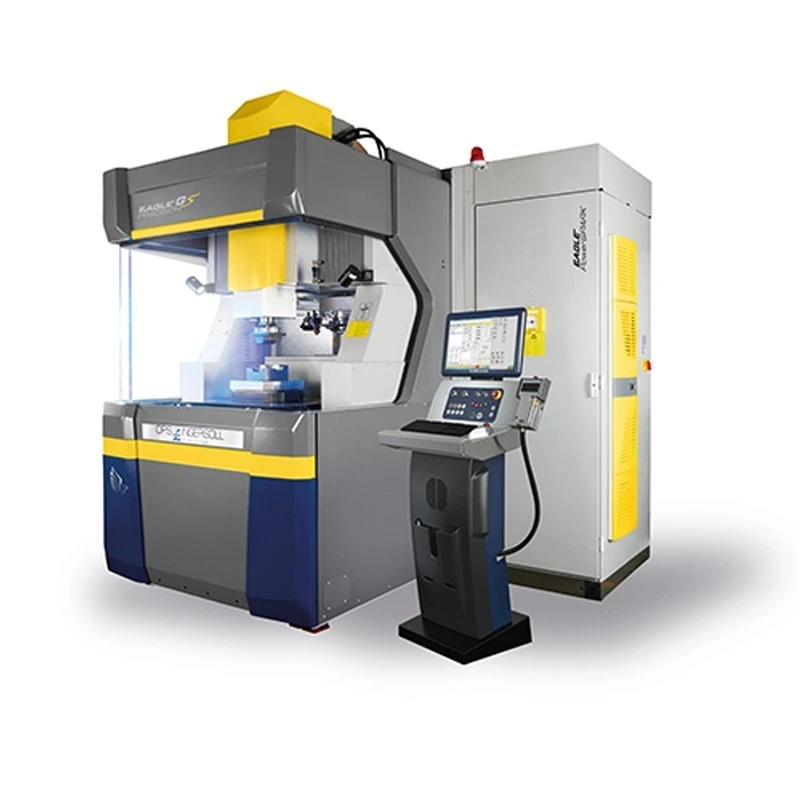

INGERSOLL Eagle G5 Precision - EDM Sinker
EDM Sinkers
Experience unmatched performance with the Eagle G5 Precision, designed to excel in multicavity machining while ensuring minimal wear. This machine integrates the revolutionary Eagle PowerSPARK Generator, enabling it to produce superior surface qualities on graphite, previously thought unattainable. The fully enclosed design coupled with active temperature control maintains high thermal stability, critical for achieving maximum precision with both graphite and copper electrodes.
The Eagle G5 Precision is user-friendly, featuring a fully encapsulated design that sustains high temperatures and quality without compromising manual accessibility or full automation capabilities. Enhanced with a powerful new drive and control package, this machine includes state-of-the-art, easy-to-use programming software and numerous innovative functions, setting a new standard for future EDM machines.
Owners and operators rave about the Eagle G5 Precision's exceptional precision and surface quality, noting the minimal wear on the machine. This cost-effective performer is built to last, with durable components that reduce wear and deliver results that meet the highest quality standards. Elevate your machining with the Eagle G5 Precision, where advanced technology meets robust utility.
| Table Size-W | 25.6" |
| Table Size-L | 29.53" |
| X | 20.6" |
| Y | 15.75" |
| Z | 17.7" |
| Control | CNC |
| Dimensions | 58" x 92.1" x 105.3" |
MACHINE
Machine weight lb. (kg) 11,795 (5,350)
Generator weight lb. (kg) 1,411 (640)
Power input kVA 16
Fuse protection A 32
Voltage / Frequency V/Hz 400/60
WORK TANK
Type Rise and fall tank – filled movable
Clear dimensions (L x W x H) inch (mm) 30.3 x 26.4 x 17.3 (770 x 670 x 440)
Dielectric fluid level max. programmable/automatic inch (mm) 14.7 (375)
WORK HEAD
Max. head load lb. (kg) 220 (100)
Distance electrode-clamping chuck to work table min./max. inch (mm) 5.3/23.0 (135/585)*
INTEGRATED C-AXIS
Rotation Speed (adjustable) RPM 1-20
Angle positioning degree 0.001
Load capacity for manual electrode change lb. (kg) 110 (50)*
Load capacity for automatic electrode change lb. (kg) 33 (15)*
Movement of inertia, max. lb./ft2 (kg/m2) 9.5 (0.4)*
WORK TABLE
Surface (L x W) inch (mm) 29.5 x 25.6 (750 x 650)
Load capacity lb. (kg) 2200 (1,000)
TRAVEL WAYS
X / Y / Z inside the work tank inch (mm) 20.7 x 15.7 x 17.7 (525 x 400 x 450)
Y (by electrode changing position) inch (mm) 26.6 (675)
CONTROL EAGLE PowerSPARK One
HMI OS Windows® 7 ultimate
Type of drive digital AC-servo Direct-drive Ball screw
X, Y, Z rapid traverse inch/min. (mm/min.) 197 (5,000)
Power Jump Z max. inch/min. (mm/min.) 708 (18,000)
Power Jump Plus X,Y (option) inch/min. (mm/min.) 197 (5,000)
DIELECTRIC SUPPLY
Filter system Cartridge (integrated)
Filter surface area sq.ft. (m2) 172 (16)
Dielectric fluid, total volume gal. (ltr.) 106 (400)
ELECTRODE CHANGER
Type (option) Direct pick-up rotary disc
Positions (option) 20 (30)
Electrode weight
– Single electrode lb. (kg) 33 (15)*
– Total weight lb. (kg) 132 (60)*
GENERATOR
Type (Option) PT60 (PT110) Adaptive current
Machining power, max. (option) A 60 (110)
ADDITIONAL FEATURES
Automatic lubrication Standard
Chiller, cooling power kW 3.9
CO2-fire extinguisher, DIN 14497, size lb. (kg) 13 (6)
